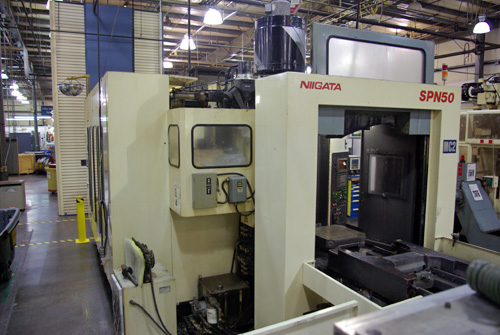

- Horizontal Machining Center
- NIIGATA
- SPN50
- 1995
- Y Axis:
- Live Tooling:
Specifications
Pallet Size : 19.7"x19.7"Table Increments : Full 4th Axis
Table Load : 1320 lbs.
Travels :
X-Axis : 29.5"
Y-Axis : 29.5"
Z-Axis : 29.5"
Spindle Center Line To Pallet Surface : 5.9"-35.4"
Spindle Nose To Table Center Line : 5.9"-35.4"
Spindle Speeds : 0-12,000 RPM
Spindle Taper : Cat 50
Rpaid Traverse :
X,Y & Z Axis : 1575 IPM
Table Index Speed 90deg : 3 sec.
Tool Magazine Capacity : 178 ATC
Maximum Tool Length : 15.7"
Maximum Cutter Diameter : 5.1"
(If Adjacent Pocket Is Empty) : 9.5"
Maximum Tool Weight : 44 lbs.
Tool Change Time (tool to tool) : 1.4 sec.
Tool Change Time (chip to chip) : 3.8 sec.
Number Of Pallets : Two
Pallet Change Time : 3.8 sec.
Height From Floor To Top Of The Pallets : 42"
Notes
Complete With :
All Motors & Controls 40/35 (30min./Constant)
Fanuc Controller 16M
Chip Conveyor
Coolant Through The Spindle
Linear Ways For High Speed Machining
Full 4th Axis On The Working Pallet
Front Pallet Does Not Rotate In The Load Position
Transformer
Niigata Built In NC Disc
Miscellaneous Tool Holders
Available Books & Manuals
