  • CNC Machine
  • Mori-Seiki
  • SL-2500SY/650
  • Lathe - CNC
  • 2.8"
  • 2002
  • C Axis:
  • Y Axis:
  • Live Tooling:
Mori-Seiki SL-2500SY/650 Lathe - CNC 2.8

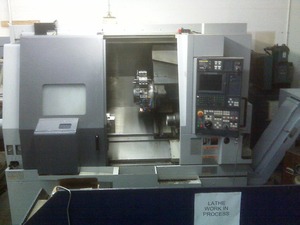

Click here for photo gallery.

Specifications

Chuck Size 10"
Max Diameter Bar Capacity 2.8"
Max Swing Over Bed / Front Cover 34.3" / 18.3"
Turning Diameter (Max / Std) 19.2" / 10.2"
Max Machining Length 25.5"
Spindle Motor 24.7 / 20 HP
Spindle Speed 4000 RPM
Spindle Bore 3.5"
Spindle Nose A2-8
Milling Motor 7.5 / 3 HP
Milling Speed 6000 RPM
Tools 12 (All Live)
Rapid Traverse Rates (X & Z / Y) 945 / 472 IPM
Sub Spindle Chuck Size 6"
Sub Spindle Nose A2-5
Sub Spindle Motor 11 / 7.5 HP
Sub Spindle Speed 6000 RPM
Sub Spindle Index .001 Degrees
X-Axis Travel 12"
Z-Axis Travel 27.2"
Y-Axis Travel + / - 2.4"
C-Axis Index .001 Degrees
Turret Index (Single Step) 0.2 Seconds
Machine Dimensions (L x W x H) 102.4" x 78.3" x 84.8"
Machine Weight 11,660 lbs.

Notes

MORIC MSG-805 (MITSUBISHI) CNC CONTROL
10.4" Color LCD
MAPPS Conversational Programming
C & Y-Axis Milling Capability
Programmable Sub Spindle
10" Kitagawa B-210 Hydraulic Chuck on Main Spindle
6" Kitagawa Hydraulic Chuck on Sub Spindle (Never used)
ATS S26 Collet Chuck on Sub Spindle
Tool Presetter
Auto Parts Catcher
LNS Quick Load Servo S2 Short Magazine Barfeed
Chip Conveyor
(2) Face Live Holders
(2) OD Live Holders
Mfg Date April 2002
Slant Bed Box Way Construction
