Sold!
Buy one like this

I want to sell a machine like this

  • CNC Machine
  • Okuma
  • Captain L370
  • Lathe - CNC
  • 2.75"
  • 2001
  • Y Axis:
  • Live Tooling:
  • Tail Stock:

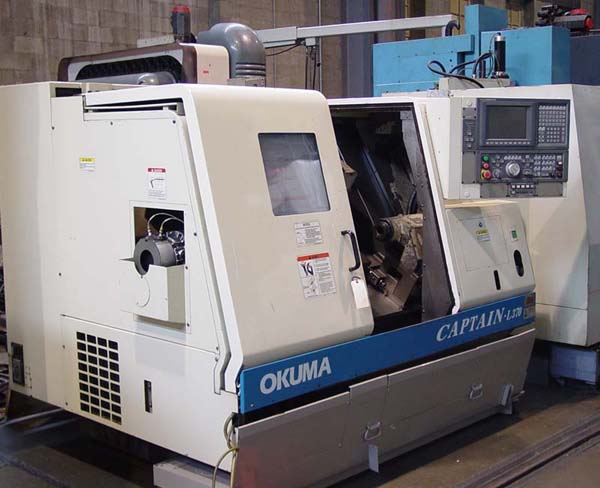

Okuma Captain L370 Lathe - CNC 2.75

Specifications

Bar Capaicty...................................................2.75"
Max Swing Over Bed...................................... 20.08"
Maximum Turning Diameter................................ 14.56"
Maximum Turning Length.................................. 20.47"
Chuck Size.............................................. 10"
Cross Travel (X-Axis)................................... 10.23"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 984 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 75-3800 RPM
Spindle Horsepower...................................... 20 Horsepower
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,000 LBS

Notes

Okuma E100L CNC Control w/CRT, IGF Programming System, 3.15" Big Bore
Spindle Bore Option, 3D Animation, Tool Life Management, Touch Setter,
Circular Interpolation, Bed Mounted Programmable Tailstock, Auto
Backlash Compensation, Coolant System, and Chip Conveyor.
