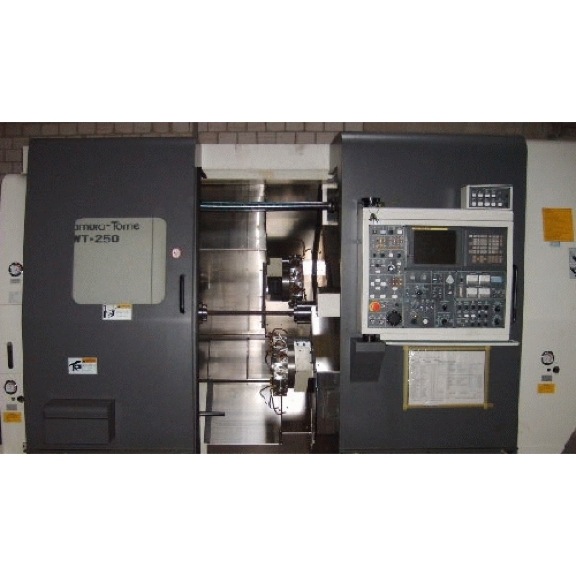

Nakamura WT-250 MMY Lathe - CNC 2004

Specifications

1 CNC Lathe NAKAMURA WT 250 MMY second hand
Year 11/2004 around 1 500 hours
Max turning diameter 240 mm
Max turning lenght 600 mm
Bar capacity on the left side 65 mm
bar capacity on the right side 51 mm
2 - C axis
2 turrets 12 stations, all stations with revolving tools, 24 stations index
Y Axis, upper turret +/- 41 mm
Spindle motor left side 15/18,5 kW
Spindle motor right side 11/7,5 kW
Airblow and coolant right spindle
Rigid tapping

Notes

CN Fanuc 18 iTB
NT Nurse II user software
Parts catcher type A left side,
Parts catcher type C right side (fully programmable for use on left as well as on right side, max part weight 3 kg)
Intelligent handweel
Short magazine: IRCO ILS 10012, Diam 102, Lg 1,2m
2 HP pumps BRINKMAN TH45/390, 5/15 bar,
Swarf conveyor
2 HAINBUCH collet for BZI 65
Interface for barloader
Tool holders:
8 OD holders type W1410-2
1 cut off holder
4 boring holders type W1417-2
1 driven tool holder, angle version
2 driven tool holder, straight version
