Ottomatics Inc. Machine List

Specifications

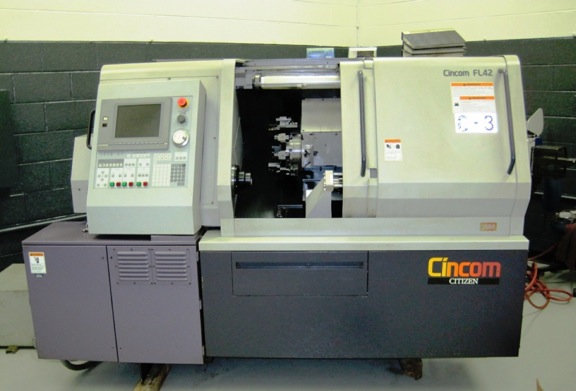

2 CITIZEN SWISS TYPE FIXED HEADSTOCK CNC
MODEL FL42
NEW 2002

SPECIFICATIONS:
Max. Machining Diameter...........................1.65 In
Max. Machining Length...............................3.15 In
Spindle Thru Hole Diameter.........................1.82 In
Spindle Speed............................................6000 RPM
Max. Chucking Diameter of Back Spindle.....1.69 In
Max. Machining Length w/ Back Spindle......3.15 In
Max. Back Spindle Speed...........................600O RPM
Number of Mountable Tools.........................12/24
Turning Tool Size........................................0.625 In
Rapid Traverse Rate
X/Z1/Z2.............................................1000 IPM
X2....................................................750 IPM
Least Input Increments (X1/Z1/Z2)................0.0001 In
Main Spindle Drive Motor............................10/15 Horsepower
Rotary Tool Drive Motor..............................1.3 Horsepower
Floor Space Requirements..........................90 In x 66.6 In
Machine Weight.........................................5620 Lbs
