  • CNC Machine
  • Hitachi-Seiki
  • HI-Cell CH-250 Super
  • Lathe - CNC
  • 2.56"
  • 2001
  • B Axis:
  • C Axis:
  • Y Axis:
  • Live Tooling:

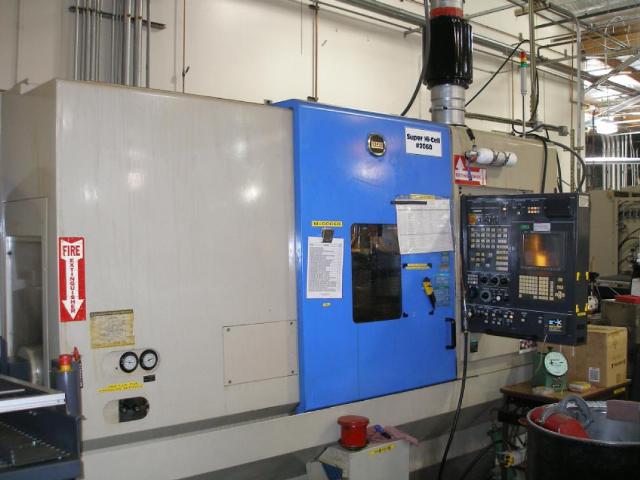

Hitachi-Seiki HI-Cell CH-250 Super Lathe - CNC 2.56

Specifications

Hitachi Seiki, Super 250, Cnc Lathe
New in 2001
New : 2000
Specifications:
Control: Seicos 16T
Chuck Size: 10" & 8"
Max Swing/Turning Diameter: 19.68"/19.68"
Max Bar Capacity Main/ Subspindle: 2.56"/1.65"
Max Turning Length: 28.3"
X-Axis Travel: 23.6"
Z-Axis Travel: 39.3"
C Axis Travel: 360 Degree Index
Y Axis Travel: +/-2.95"
B Axis Travel (Sub-Spindle): 33.8"
Spindle Nose/Spindle Bore(Main): a2-8"/3.15"
Spindle Speed: 30-4,000 Rpm
Spindle Motor 30 Min/Cont: 25 Horsepower/20 Horsepower
Automatic Tool Changer: 60 Tools
Subspindle Speeds/ Drive Motor: 5,000 Rpm /10 Horsepower
Live Tooling Taper: No 40 Short Taper
Rotary Tool Speed/ Rotary Motor: 8,000 Rpm/10Hp
Rapid Traverse X,Z/Y/B: 1181/590/984 Ipm

Notes

Equipped With:
Chip Conveyor,
Live Tooling "C" Axis,
Y-Axis and Full B-Axis
Prepped for High Pressure Coolant System
Tool Presetter,
60 Position Turret,
10" Hydraulic 3-Jaw Chuck, Main,
8" Hydraulic 3-Jaw Chuck, Sub,
Siecos Sigma 16 Ctrl
All Available Manuals,
All Available Tooling
