Ottomatics Inc. Machine List

Specifications

Machine Bed
Linear guide ways 4

Working Area
Swing 22.04"
Turing max. at machine w/Sub Spindle 22.04/12.59"
Turing max at machine with tailstock 15.74/15.74"
spindle distance at machine w/sub
spindle 51.18/39.37"

Head stock L.H. & R.H. spindle motor

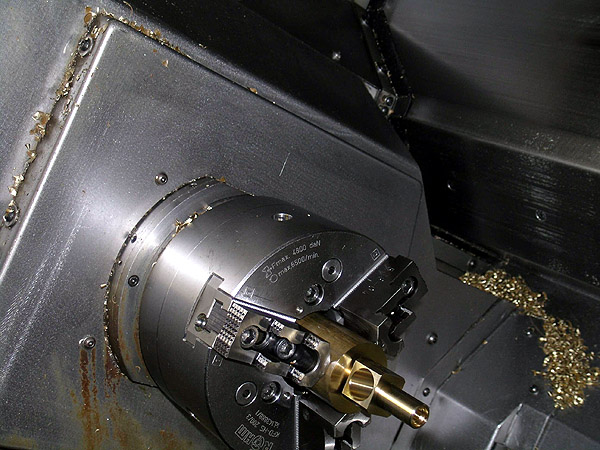

Chuck 7.87/9.84/12.40"
Bar max. 2.55"
Spindle Nose 6.69h5"
Spindle bore 3.11"
Draw bar 2.67"
Spindl in front bearing 4.72"

Main drive L.H. & R.H
Drive rating, max 100/40%DC 33.51/49.59 Horsepower
Speed Range 5000 rpm
Crease Speed Range 900 rpm
Torque, max 100/40%DC 199.14/287.64 lb*ft
Kind of drive./no of range AC/1
Version ISM65
Speed of C-Axis 5000 rpm
Torque C-Axis 272.89 lb*ft
Input Precision 0.001 deg.

Slide 1 - Upper
Slide traverse X1/Y1 19.09/+/- 3.14"
Slide Travel Z1 42.12"
Rapid traverse X/Ys/Z 131.2/78.196 8 ft/min
Thrust S6-40% X/Ys/Z 1573.6/2472.8/686.0 lbf
Resolution X/Ys/Z 0.0039"
Ball Spindle - X., dxh 1.25x0.78"
Ball Spindle - Ys, dxh 1.25x0.59"
Linear Motor Z1-Axis 1FN3900-3WB00


Slide 3 for sub spindle
slide traverse Z3 41.73 in
rapid traverse Z 157.47 ft/min
thrust Z 2472.88 lbf
resolution Z 0.0254 in
ball spindle-Z, dxh 1.25x0.78 in

Upper tool carrier
tool register HSK63-A
speed range, max. 12000 rpm
drive power, max. 100/40% DC 17.69/29.49 Horsepower
torque, max. 100/40% DC 44.25/73.75 lb*ft
kind of drive/no of range AC/1
type ISM
resolution spindle axis 1 Degree
stop moment, locked 368.78 lb*ft

B-axis CNC
range B1 +/- 120 Degrees
speed range B11 160 degrees /sec
torque B-axis, 4218.84 lb*ft
loop free interpolating, resolution 0.001 Degrees
locking hydraulical 1475.12 lb*ft

Tool magazine
no of tools 46
tool length, 29 times max. 11.81 in
tool length, 17 times max. 9.84 in
tool weight G1/G2 11.02/17.64 lb
loading stations 4


Tool changer
double gripper, mechanical controlled/variable
drive power 0.73 Horsepower
tool change time G1/G1 1.3/2.6 sec
lift out way 2.36 in

Nc-Tailstock, Mechatronical
stroke 41.73 "
Thrust 1798.46 lbf
quill taper 5MT
drive unit NC Mechantronical
rapid traverse Z 104.98 ft/min

Electrical Connections
Connected load, total approx 75 KVA
Voltage 400V
Frequency 50 Cycles
fusng (Slow -blowing)
according to VDE 0100 125A
Admissible voltage fluctuation
for 400 V +/- 10%

Weights and dimensions

30,000 lbs
L / B / H 287.40 x 157.48 x 110.23"
