  • CNC Swiss
  • Citizen
  • L-32
  • Lathe - CNC
  • 32mm
  • 1998
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:

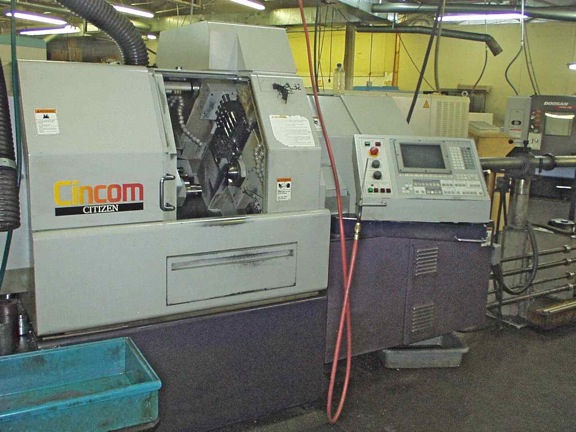

Citizen L-32 Lathe - CNC 32mm 1998
Click here for photo gallery.

Specifications

General specification Citizen L32
CNC Control: Mits Meldas 520 LDC
Maximum Stock Diameter: 1 1/4"
Maximum Length per Chucking: 10"
Main Spindle Speed: 200 - 8000 rpm
Main Spindle Motor: 5 / 7.5 Horsepower
Main Spindle Index: C-axis
Sub-spindle:
Maximum Chucking Diameter: 1-1/4"
Pick-off Spindle Speed: 200 - 6000 rpm
Pick-off Spindle Motor: 3 Horsepower
Sub-spindle Index: 15 degree
Rotary Tool Spindle Speed: 200 - 5000 rpm
Rotary Tool Motor: .5 Horsepower
Number of Tools to be Mounted: 17
Tool Positions; Turning/Front/Back/Rotary: 5 / 3 / 5 / 4
Tool Size, Square Shank / ID Sleeve: 5/8" / 1"
Weight (approx.): 5512 lbs.

Notes

5 Axis Swiss Automatic, Complete With Mitsubishi 520 Cnc Control, New 1998
Max Stock Diameter 1.25"
Spindle Speeds 200-8000 Rpm
Complete With:
12 Standard Stations
4 Live Tooling Stations
Large Quantitiy Of Collets And Tooling
Rhino Barfeed
Manuals
