  • CNC Machine
  • Hyundai
  • SKT250SY
  • Lathe - CNC
  • 3"
  • 2007
  • B Axis:
  • Y Axis:
  • Live Tooling:

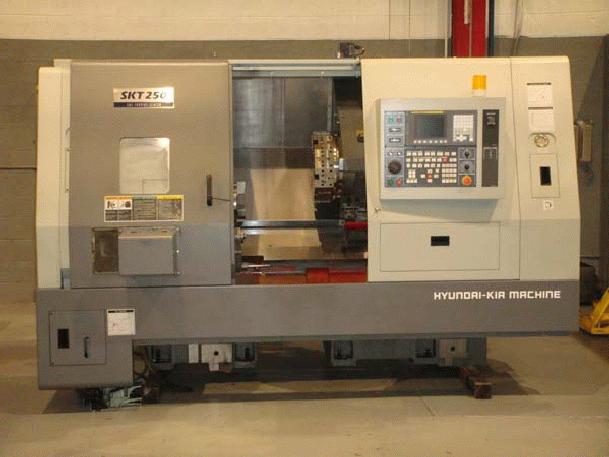

Hyundai SKT250SY Lathe - CNC 3

Specifications

SWING OVER BED 24.4"
SWING OVER CROSS SLIDE 19.3"
MAX. DIST BETWEEN SPINDLES 24.8"
X AXIS TRAVEL 8.27"
Z AXIS TRAVEL 21.7"
Y AXIS CROSS TRAVEL 4.33" (+/- 2.17")
B AXIS LINEAR TRAVEL (SUB SPINDLE) 27.6"
RAPID TRAVERSE RATE X / Z AXES 945 IPM
SPINDLE NOSE (MAIN / SUB) A2-8 / FLAT NOSE
SPINDLE BORE / BAR CAPACITY 3.07" / 3"
SPINDLE SPEEDS (MAIN SPINDLE) 25 - 3500 RPM
SPINDLE SPEEDS (SUB SPINDLE) 30 - 6000 RPM
SPINDLE MOTOR (MAIN / SUB) 30 Horsepower / 5 Horsepower
TURRET CAPACITY 12 STATION
LIVE TOOLING MOTOR 5 Horsepower
LIVE TOOLING SPEEDS 1500 - 4000 RPM
MACHINE FLOOR SPACE, APPROX. 126" x 78"
MACHINE WEIGHT, APPROX. 14,300 LBS

Notes

Equipped With Fanuc OTc Cnc Controls
Lns Quick Load Servo S3 Bar Feed Chip Conveyor
Coolant Tank And Pump Parts Catcher Tow Along
Tail Stock 5.4hp Spindle Motor 12 Tool Positions
45 Deg Bed Slant Box Way
Approximate Dimensions: 126"X 79"
Approximate Weight: 14,000 Lbs
Only 604hrs Cut Time!!
