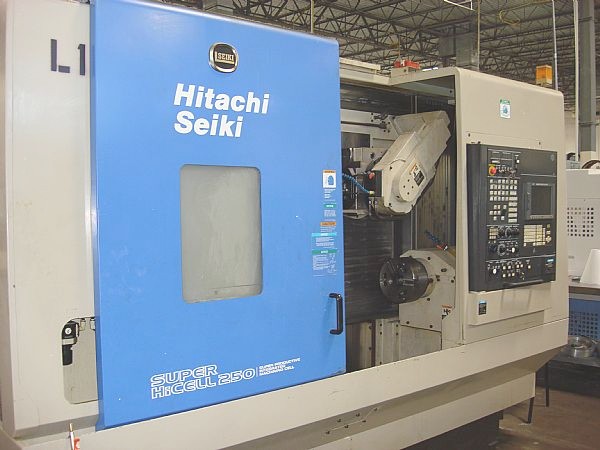

Hitachi-Seiki HI-Cell CH-250 Lathe - CNC 2001

Specifications

Chuck Size 10" & 8" chucks
Maximum Swing / Turning Diameter 19.68" / 19.68"
Maximum Bar Capacity Main / Subsd.
2.56" / 1.65"
Maximum Turning Length 28.3"
X-Axis Travel 23.6"
Z-Axis Travel 39.3"
C Axis Travel 360 Degree Index
Y Axis Travel +/- 2.95"
B Axis Travel(subspindle) 33.8"
Spindle Nose / Spindle Bore(main)
A2-8" / 3.15"
Spindle Speed 30 - 4,000 RPM
Spindle Motor 30 Min. / Cont. 25 Horsepower / 20 Horsepower
Number of Turret Positions
20 Positions/all live
Subspindle Speeds / Drive Motor
5,000 RPM / 10 Horsepower
Live Tooling Taper No 40 Short Tpr
Rotary Tool Speed / Rotary Motor
8,000 RPM / 10 Horsepower
Rapid Traverse X, Z / Y / B
1181/590/984 IPM

Notes

Chip Conveyor
Live Tooling "C" Axis
Subspindle "B" Axis
Y Axis - Offcenter Capability
Tool Presetter
20 Position Turret
10" Hydraulic 3 Jaw Chk Main
8" Hydraulic 3 Jaw Chk Sub.
All Available Manuals
All Available Tooling
