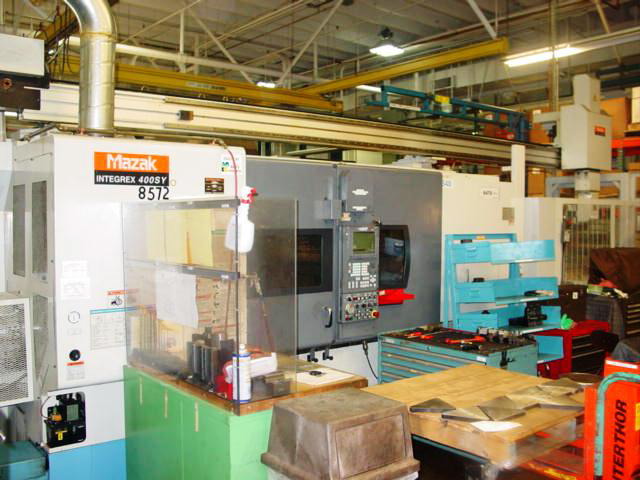

ONE ( 1 ) MAZAK CNC TURNING CENTER
MODEL INTEGREX 400SY with (GL-300 Gantry)
MFG: 2000

SPECIFICATIONS:
Max. Swing.........................................24.01 In
Swing Over Carriage.............................15.35 In
Max. Machining Length.........................60.15 In
X-Axis Stroke.......................................22.83 In
Y-Axis Stroke......................................8.26 In
Z-Axis Stroke.......................................63.19 In
Spindle Speed.....................................3000 RPM
SUB SPINDLE.....................................3000 RPM
Spindle Nose.......................................A2-8 In
Spindle Bore........................................3.46 In
Min. Spindle Indexing Increment............0.001 In
Turret Type..........................................Single Spindle W/ATC
Rotary Tool Speed Range.....................6000 RPM
Tool Shank Configuration-Rotary Tool.....40
Tool Storage Capacity...........................80 Tools
Max. Tool Diameter..............................3.54 In
With Adjacent Pockets Empty.............4.72 In
Max Tool Length..................................11.81 In
Max. Tool Weight.................................22 Lbs.
Rapid Traverse Rate
X-Axis.......................................1181 IPM
Y-Axis.......................................590 IPM
Z-Axis.......................................1181 IPM
C-Axis.......................................300 RPM
Main Spindle Motor ( Cont/ 30 Min )......AC 30/ 40 Horsepower
Rotary Tool Motor ( 10 Min. Rating).......AC 20 Horsepower
