Specifications

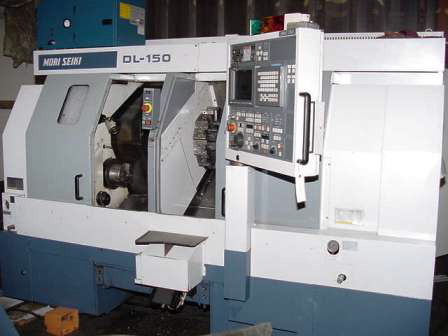

GENERAL SPECIFICATIONS FROM MANUFACTURER FOR DL-150Y
CNC CONTROL: MSC-501
SWING OVER BED: No. 1,2: 16.5"
MAX. DISTANCE BETWEEN SPINDLE NOSES: 40.2"
MAX. TURNING DIAMETER: No. 1,2: 7.8"
STANDARD TURNING DIAMETER: No. 1,2: 5.9"
MAX. TURNING LENGTH: No. 1,2: 7.8"
BAR WORKING CAPACITY: 1.7"
TRAVEL:
X-AXIS FIRST/SECOND: No. 1,2: 9.3/ 8.5+/-0.8"
Y-AXIS: 3.1+/-1.6"
Z-AXIS: 9.8"
2ND HEADSTOCK TRAVEL: 30.9"
# OF SPINDLES: 2
SPINDLE SPEED RANGE: No. 1,2: 50-5,000 (80-8,000 OPT) RPM
SPINDLE NOSE: No. 1,2: JIS A2-5
THROUGH SPINDLE HOLE DIAMETER: No. 1,2: 2.2"
MIN. SPINDLE INDEXING ANGLE: 0.001 DEGREE
# OF TURRETS: 2
# OF TOOLS PER TURRET: No. 1,2: 12(ROTARY:12)
SHANK HEIGHT FOR SQUARE TOOL: 3/4"
SHANK DIAMETER FOR BORING BAR: 1 1/4"
TURRET INDEXING TIME: 0.25 SECONDS
ROTARY TOOL SPINDLE RANGE: 30-3,000 (40-4,000 OPT) RPM
RAPID TRAVERSE RATE:
X1 & X2 Axis: 708.7 IPM
Z1 & Z2 Axis: 944.9/1181.1 IPM
Y: 236.2 IPM
C: 200 IPM
SPINDLE DRIVE MOTOR: No. 1,2: 7.5HP/10HP
ROTARY TOOL SPINDLE DRIVE MOTOR: 3.8HP
DIMENSIONS (APPROX.): 126.6" X 97.8" X 79.9"
WEIGHT (APPROX.): 16,720 LBS
