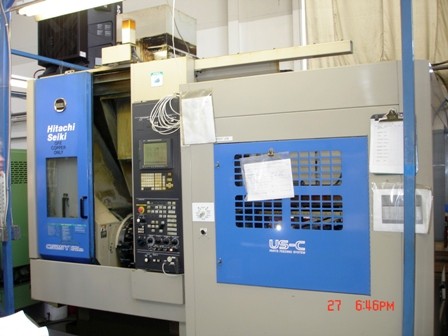

Hitachi-Seiki HI-Cell CS 25y Lathe - CNC 2001

Specifications

HITACHI CS25Y CNC INVERTED SPINDLE Y-AXIS TURNING CENTER
W/40 STATION TOL CHANGER

SPECIFICATIONS
Chuck Diameter 10"
Maximum Swing 15.7"
Maximum Turning Length 6
Number of Speed Ranges 1
Spindle Speeds 30-4000 RPM
Spindle Nose A 2-8"
Table Horse Power 25/20 Horsepower AC
Tool Capacity 12
Rotating Tool Stations 12
Milling Tool Spindle Speed 100-3000 RPM
Milling Spindle Drive Motor 5 Horsepower AC
Tool Size 1" square
Vertical Ram Travel (Z-Axis) 14.5"
Horizontal Ram Travel (X-Axis) 51.5"
Y - Axis Travel +- 2.00"
Rapid Traverse Rate X,1181 IPM
Z,1181IPM
Machine Weight 15,500 LBS.

Notes

HITACHI SEIKI SEICOS 21L CONTROL
Y AXIS CONTROL OPTION
DIRECT TAPPING
THREAD CUTTING CYCLE
CUSTOM MACRO
DRILLING CYCLE (ROTATING TOOL)
EIA/ISO INPUT / OUTPUT
CHIP CONVEYOR
10" 3-JAW HYDRAULIC CHUCK
AUTOMATIC LOADING AND UNLOADING
(26) AUTOMATIC PITCH TYPE FEED CONVEYOR
ALL AVAILBLE TOOLING
ALL AVAILABLE MANUALS
