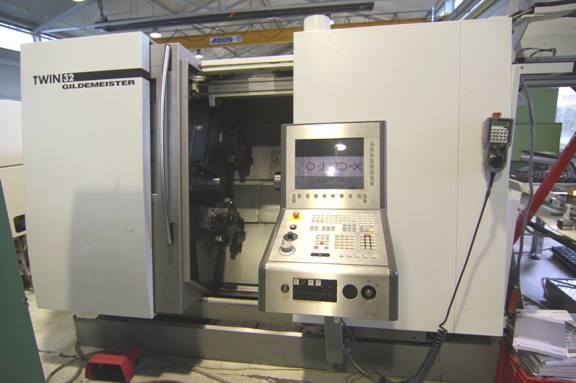

Gildemeister Sprint 32 Lathe - CNC Twin Spindle Opposed 2004

Specifications

turning diameter 100 mm
turning length 345 mm
control Sinumerik 840 D
greates pass round over bed 145 mm
spindle distance 580 mm
chucking diameter max.: 140 mm
spindle head links/rechts 120h5
spindle bore links/recht 50mm
bearing diameter 75 mm
power capacity at 100 % load 2 x 21 kW
power requirement 2 x 26/40% kW
turning speeds 40 - 8000 U/min
max. torque on the spindle 100 Nm
C-Axis 2000 U/min
Traverse Z-Axis 1 320 mm
Traverse X-Axis 1 220 mm
rapid traverse x + z axis 30 m/min
travel -y axis +/-30 mm
rapid traverse Y-axis 15 m/min
Traverse X-Axis 2 120 mm
Traverse Z-Axis 2 345 mm
rapid power traverse in X-and Z direction 30 m/min
spindle distance 380 mm
rapid traverse: headstock and ram 30 m/min
numbers of turret head positions 2 x 12 pos.
number of driven tools 2 x 12 pos.
turning speed range - milling 6000 U/min
power capacity - milling spindle 2,1 / 3,8 kW
weight of the machine ca. 5,0 t
dimensions of the machine ca. 3,9 x 2,6 x 2,05 m

Notes

Accessories
Chip conveyor
Other information
18500 h running hours
7700 h spindle hours
