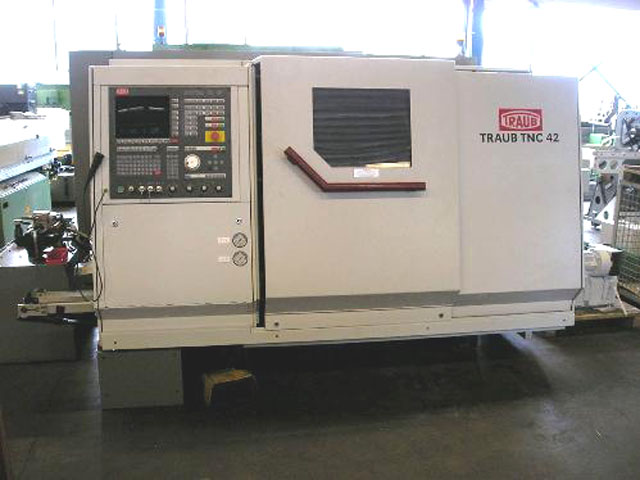

Traub TNC 42 DGY Lathe - CNC 42mm 1995

Specifications

Max. turning length: [mm] 450
Bar capacity: [mm] 42
Type : Traub TNC 42 DGY
Control: TX 8
Year: 1995
Max. revolution: [rpm] 5.600
Input power: [kW] 18,5 / 11

Travel:
X-Axis: [mm]
Z-Axes: [mm]
C-Axis
Rapid motion: (X/Z) [m/min] 15 / 30

Equipment:
Amount of turrets: 2
Y-Axis: [+/- mm] oben
Tool capacity: 14
Driven Tools 14
Max. revolution: [rpm] 4.000
Tool: VDI 25

Subspindle
Max. revolution: [rpm] 5.600

Synchronized tapping
Tool setter
Partscatcher A left
Collets 2x Hainbuch-Spanntop BZI 42

Req. space (LxBxH): [m] 2,562 - 2,01 - 1,79
Machine weight: [kg] 4.550

Notes

Accessories:
Chip conveyor
Bar loader magazine DNH 42 - 3000
Toolholders
