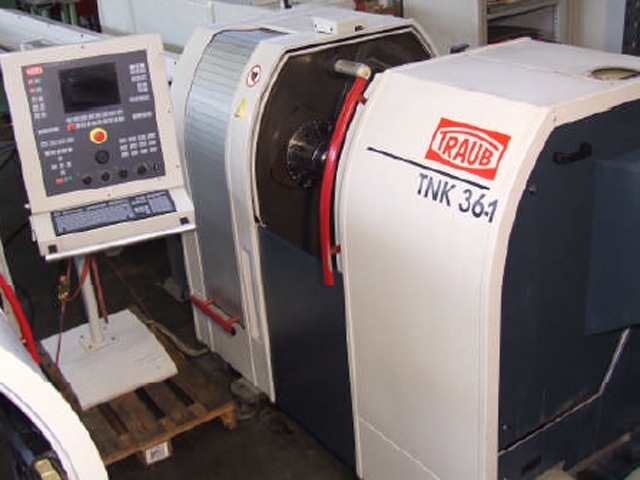

Specifications

Max. turning length: [mm] 100
Turningdiameter: [mm] 36
Max. revolution: [rpm] 6.300
Torque: [Nm] 21 / 32
C-Axis index. 0,001^0
Bar capacity: [mm] 36
Input power: [kW] 10,7 / 6,7 (25% / 100%)

Subspindle
Max. revolution: [rpm] 6.300
Bar capacity: [mm] 36
Torque: [Nm] 21 / 32
C-Axis index. 0,001^0
Input power: [kW] 10,7 / 6,7 (25% / 100%)

Travel:
X-Axis: [mm] X:50 / X3: 370 / X4: 75
Y-Axis: [+/- mm] Y: 20
Z-Axes: [mm] Z: 100 / Z3: 250 / Z4: 250
Rapid motion: (X/Y/Z) [m/min.] X: 15 / X3: 30 / X4: 15
Y: 15 / Z: 30 / Z2: 30 / Z3:

Equipment:
Amount of turrets: 1
Amount of tools: [pieces] 12
Torque: [Nm] 7,2 / 14,4
Time for tool change: [s] c to c: 0,55
Input power: [kW] 5,5 / 2 (25% / 100%)

Driven Tools

Power consumption: [KW] 33
Machine weight: [kg] 3.500
Req. space (LxBxH): [m] 3,4 x 1,3 x 1,7

Accessories:
Bar loader magazine FMB Turbo 5 - 42
Year: 2000

Chip conveyor
