  • CNC Machine
  • Mazak
  • INTEGREX 200-III SY
  • Lathe - CNC
  • 2.4"
  • 2005
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:

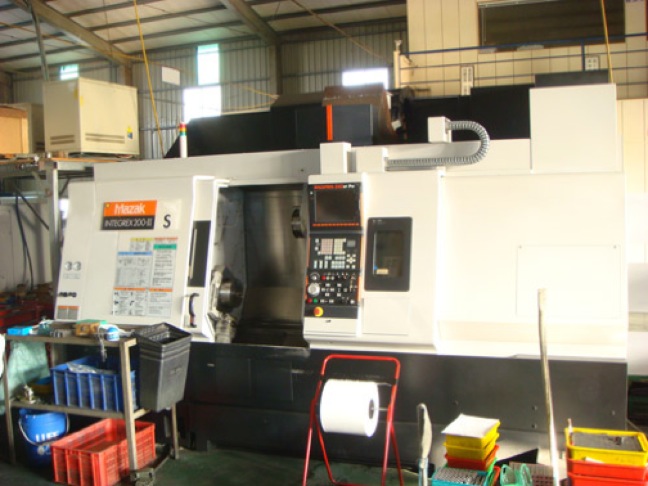

Mazak INTEGREX 200-III SY Lathe - CNC 2.4

Specifications

The machine is the Type III Machine. Specs are for a Type ii
MAZAK MODEL INTEGREX 200-IISY
CNC TURNING CENTER WITH Y-AXIS*
Maximum Swing Over Bed: 21.25"
Maximum Swing Over Carriage: 20.47"
Main & Second Spindle Speeds: 35 - 5,000 RPM
Rotary Tool Speed: 10,000 RPM
Main & Second Spindle Nose: A2-6
Main & Second Spindle Bore: 2.40"
Boring Bar Shank Diameter: 1.57"
Spindle Indexing (Programmable): .001 Degree
Spindle HP: 20/30; Second Spindle HP: 10
Rotary Tool Motor: 10 Horsepower
Turret Type: 1 Position w/ATC
X-Axis Travel: 20.87"
Y-Axis Travel: 5.50"
Z-Axis Travel: 42"
Second Headstock Stroke (Z2-Axis): 39.56"
Rapid Travers Rate (Y/X/Z): 1181/590/1299 IPM
Rapid Speeds (C-Axis & 2-nd Spindle): 400/787 RPM
Jog Feedrate (X,Y,Z): .04 - 78.74 IPM
Tool Changer Capacity: 40 Tools

Notes

Max. swing/swing over carriage:540/520mm
Max. machining length: 1018mm
X/Z axis travel: 140/1065mm,
Spindle speed: 5000rpm,
40 tools
Controller: MAZATROL 640
C axis
