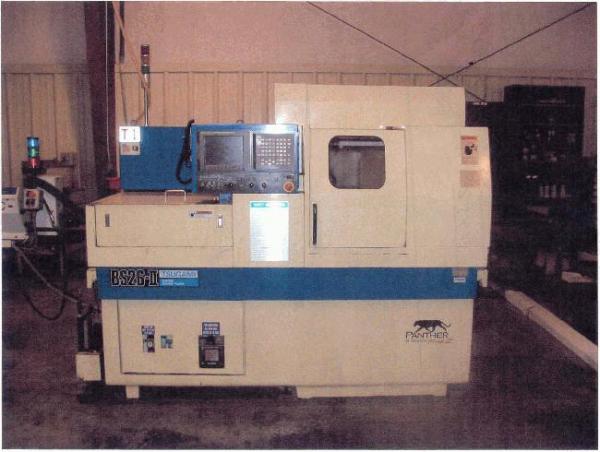

Tsugami BS-26II Lathe - CNC 26mm 1999

Specifications

Max. Diameter Bar Capacity 1.023"
Main Spindle Motor 5 Horsepower
Max. Driling Dia. 0.375"
Max. Tapping 0.3125"
Number of Tools 17
Turning Tools 6
Live Tools 4
Front End-Working Tools 4
Backworking Tools ???3
Rapid Traverse Rates 787 IPM
Sub Spindle Motor 3 Horsepower AC
Sub Spindle Speed 200- 7000 RPM
Sub Spindle Index 5 degrees
X1 AXIS TRAVEL ???2.0"
X2 AXIS TRAVEL ???7.9"
Z1 AXIS TRAVEL ???8.21"
Z2 AXIS TRAVEL ???7.88"
T1 AXIS TRAVEL ???5.9"
T3 AXIS TRAVEL ???5.11"
Milling Motor 1.5 Horsepower AC
Milling Speed 5000 RPM
Main Spindle Indexing .001 degrees
Spindle Speed Range of Main Spindle 200-7,000 RPM
Main Spindle Horsepower 5 Horsepower

Notes

EQUIPPED WITH
FANUC 18iTA CNC CONTROL
IEMCA BOSS 325 MAGAZINE BARFEED
REAR EJECTION TUBE (2)
C-AXIS ON MAIN SPINDLE
5 DEGREE INDEX ON SUB-SPINDLE
FLOOD COOLANT SYSTEM
DOOR INTERLOCKS
PARTS CATCHER
RIGID TAPPING
MANUAL PULSE GENERATOR
MAYFRAM CHIP CONVEYOR
CANNED CYCLE FOR DRILLING
TOOL NOSE RADIUS COMPENSATION
GEOMETRIC AND WEAR OFFSETS
