- CNC Swiss
- Citizen
- L-20 (5) VIII
- Lathe - CNC
- 20mm
- 2003
- C Axis:
- Live Tooling:
Specifications

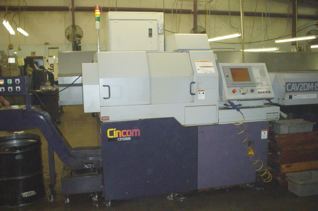

(1) Citizen L(5)20 VIII 5M8 Swiss Type CNC Lathe (used)New 2003
See original quote and specifications attached (as new)
Equipped with:
Mitsubishi Meldas / CINCOM Windows based control
(1) Live tool block for live end working/back working (3) position.
Replaces 3 position static block for sub spindle work.
(5) Live tool positions
In the 5th live tool position is the GSE-910 (3) position live tool block.
The mounting direction of this spindle can be switched for cross or end
face machining, and it can perform drilling on the outer diameter or
drill on the end face. The maximum chuck diameter is 10 mm and the
chuck model is ER16.
Chip Conveyor
Part Conveyor
Full C axis main & sub spindles
All control options on
Citizen CAV20M-IS Magazine bar loader (12')
All available manuals & tooling.
Notes
This machine can have up to 14 live tools!
Please advise of any interest or questions. We are pleased to offer
the following for your consideration.
ALSO - this machine also has the live 3 position front working option!
(2 live, 1 static) and extra $14K in special hardware to make them both
function on the same machine.
Machine is in very good condition. Ran 2 shifts / 5 days a week
on aluminum and brass only. Ran oil. (Mist collector pictured but not
included).
Inspected by a Citizen technician, prepared for shipment, & loaded onto
a truck. Shipping is buyer's responsibility.
Additional Accessories -
GSE-1007 (6) position live tool block available at additional cost if
needed. This spindle performs drilling on the front or back end face.
It is capable of simultaneous machining on the front and back faces.
The maximum collet diameter is 7mm and the chuck model is ER11.
High Pressure Coolant System, Mist Collectors, Magazine & Single
bar loaders - ask about availability and cost.
