  • Automatic
  • New Britain
  • Model 62
  • Multi Spindle Bar
  • 6 Spindle
  • 1969

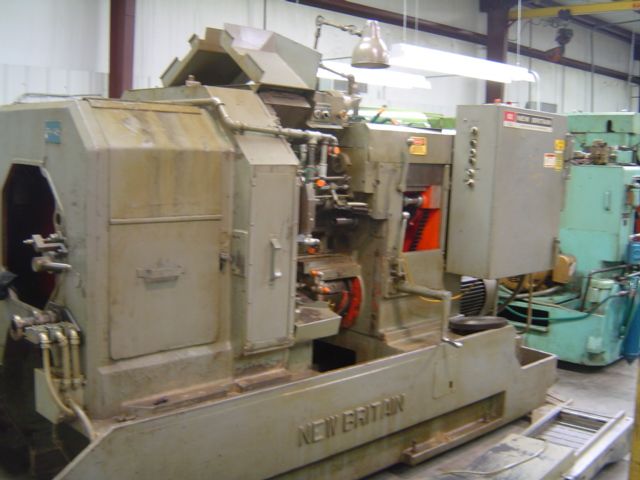

New Britain Model 62 Multi Spindle Bar 6 Spindle 1969
Click here for photo gallery.

Specifications

STANDARD SPECIFICATIONS
Height: 6'5"
Length:12'
Weight:19,000 lbs
Width:4'8"
Cap. Round: 1 5/8" or 2 1/4"
Coolant Capacity 130 Gallons
Idle 1.52 w/3" Tool Slide Cam
Idle 1.66 w/6" Tool Slide Cam
Max Die Head Dia: 5 1/4"
Max Feed Lower Slides 1.655"
Max Stock Feed 7 1/2"
Max Feed Mid Slides 1.504"
Max Feed Top Slides 1.504"
Max Trav Lower Slides 2 9/16"
Max Trav Mid Slides 2 5/16"
Max Trav Top Slides 2 5/16"
Motor Horsepower 15-30 at 1800 RPM
Spindle Speeds 177-2519
Standard Bearings: Ball
Tool Slide Travel 6"

Notes

Model 62 New britain (2-1/4)
16ft silent tubes and Aercology mist
collector. Serial# 37099 new 1969 and 36107new 1966.
One machine had bearing done last year and the auxiliary drum rebushed
The other machine was not run as much and had bearings replaced 1999.
Both were purcahsed 1996 from Navy Surplus with zero
hours and put into service in 1999.
Hydraulic Feed Clutches - missing at present
6 Independent Cross Slides
Cams and Gears
Covers and Guards
Motors and Controls
Speed and Feed Gears
Stationary Tool Slide Holders
Stock Reel And Stand
