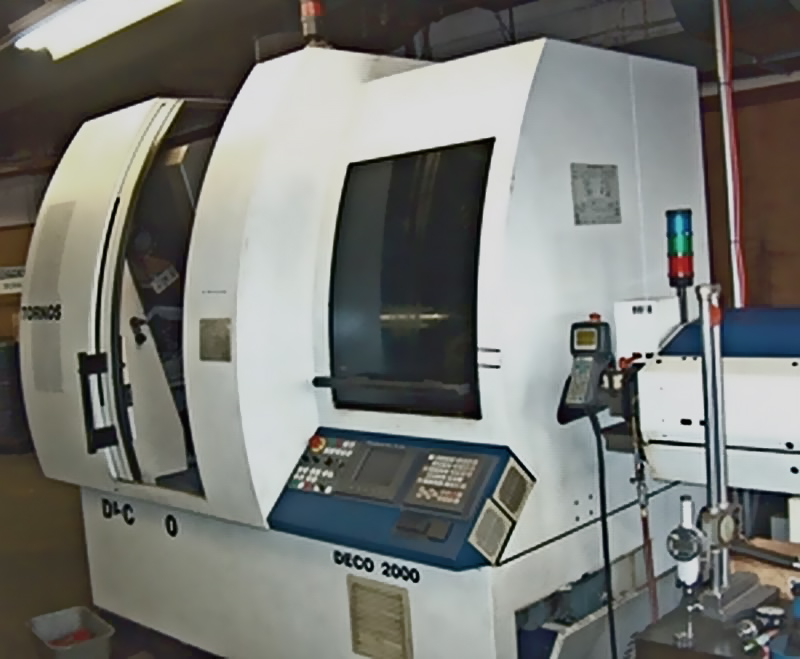

(1) USED TORNOS DECO 2000/20a CNC SCREW MACHINE

SPECIFICATIONS:
Number of Axes 10
Max Diameter Bar Capacity 0.787"
Max Machining Length 7.87"
Main Spindle Motor 5.5 Horsepower
Main Spindle Speed 100 - 10,000 RPM
Rotary Tool Speed 100 - 8000 RPM
Rotary Tool Motor 2.2 Horsepower
Main Spindle Indexing 0.1 Degrees
Number of Tools 21
Turning Tools 10
Live Tools 11
Front End - Working Tool 4
Back Working Tools 7
Sub Spindle Index 0.1 Degree
Sub Spindle Motor 2.2 Horsepower
Sub Spindle Speed 100 - 8000 RPM
X1-Axis Travel 0.787"
X2-Axis Travel 0.787"
Z1-Axis Travel 7.87"
Z2-Axis Travel 7.87"
Machine Dimensions 62" x 38" x 72"
Machine Weight 3300 lbs.
EQUIPPED WITH:
Advanced TB Deco CNC control
Synchronous Rotary Guide Bushing
IEMCA Mini-Boss 332 12 ft. Magazine Barfeed
C-Axis Milling Capability on Main & Sub Spindle
S3 / S5 / S6 Motorization for Live Holders
Optical Tool Presetter Type 2003
Thread Whirling Attachment
Mechanical Lock for Main Spindle
Adjustment of Clamping Pressure
(4) Cross Drilling / Milling / Tapping Units
Revolving Cross Drilling / Milling Spindle For ESX25
Sharpening Device for Thread Whirling Cutters
Revolving End Unit with Long Spindle for ESX25
Positioned Stop for Sub Spindle
Parts Ejector with Pneumatic Piston
Parts Basket 100mm
Cleaning System for Sub Spindle Coolant Oil
3 MB Extended Memory Ram upgrade
Mini-Detector Tool Breakage Detector
Filtermist Mist Collector
