Sold!
Buy one like this

I want to sell a machine like this

  • CNC Machine
  • Traub
  • TNK 28/36
  • Lathe - CNC
  • 28mm
  • 2002
  • C Axis:
  • Sub Spindle:

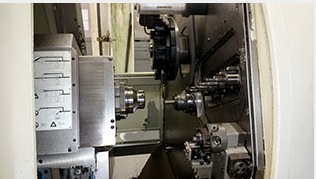

Traub TNK 28/36 Lathe - CNC 28mm 2002

Specifications

C-axis 0.001
sub-spindle with C-axis 0.001
rapid travel X3 / Z2 30/30 m/min
turret 1 with driving attachement, 12 stations
work travel X/Y/Z 50/+/-20/100 mm
rapid speed X/Y/Z 15/15/30 mm
front attachement
5 tool taper, 4 of which live
chip conveyor
bar feeder

Notes

Traub TNK-28/36 mfd. 2002. FMB 5-42 bar loader, sub spindle. 12 station turret all driven. 5 front drilling stations. 5 back drilling stations. Main spindle 8000 rpm. Sub spindle 8000rpm.
