Specifications

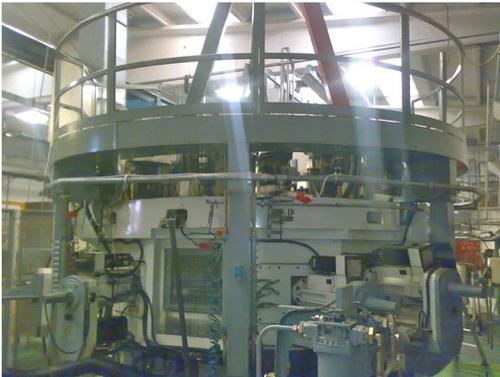

The Machine Is a Gnutti Cn "Spider" and Has 21Units Cn (if Necessary We Can Add 4):
No. 11 Units from the Top of Which:
Three Units Mounted on a Slide With 2 Controlled Axes,
Two Special Units for Deep Hole or Precision Hole,
a Unit With Recess;
No. 4 Radial Units Including One Mounted on
a Slide to a Controlled Axis;
No. 6 Units from Below.
the Units Have Attack Iso40 With the Exception
of the 2 Special Units With Hsk63.
the Table Is Suspended and Has 12 Stations With No. 12
Clamps That Can Be Rotated 90 ^0 (5-10-15-20 ....)
Rotatable Clamps Between St.7 and St.8, St.12 and St.1.
Chip Conveyor With Rotofiltro, Filtering System With
Paper and "Refrigerator".
Volumetric Locking Clamps.
Fanuc Numerical Control Mod. (Confirmed).
the Machine Is 2003 and Has Only Worked on the
Same Particular Cast Aluminum, Has Never Been Retooled
(if Necessary We Can Do Ourselves).
