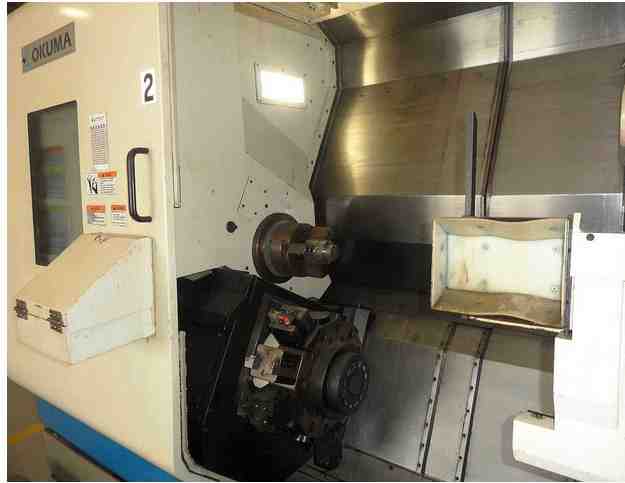

ONE OKUMA CNC TURNING CENTER
MODEL MACTURN 250-W
NEW 2003

SPECIFICATIONS:
Max. Swing.....................................20.87 In
Max. Turning Diameter-Upper.........21.65 In
Max. Turning Diameter-Lower.........9.06 In
Distance Between Noses................56.69 In
Spindle Bore Left.............................2.44 In
Spindle Bore Right..........................1.69 In
Spindle Speed Left.........................5000 RPM
Spindle Speed Right.......................6000 RPM
Spindle Nose...................................A2-6
ATC Turret Positions......................44
X-Axis Travel Upper........................18.7 In
X-Axis Travel Lower........................6.3 In
Z-Axis Travel Upper........................46.06 In
Z-Axis Travel Lower........................45.47 In
Y-Axis Travel...................................6.3 In
Z-Axis Travel...................................39.37 In
C-Axis Travel...................................0.001 Deg.
Rotary Tool Speed..........................5000 RPM
Main Spindle Drive Motor................20/ 30 HP
2nd Spindle Drive Motor..................10/ 15 HP
