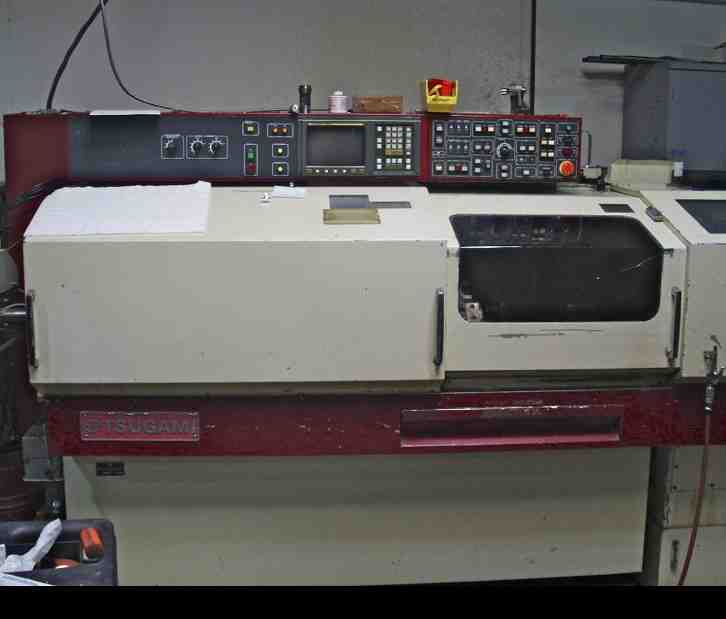

Tsugami NP-32 Lathe - CNC 32mm 1991
Click here for photo gallery.

Specifications

TSUGAMI MODEL NP-32 MARK II CNC SWISS TYPE LATHE WITH FANUC
OTT-C CONTROL (1991)

SPECIFICATIONS:
Capacity 5/16 – 1 1/4"
Maximum Length 8.3"
Maximum Hole Diameter " DIAMETER DRILL
Maximum Thread Size " TAP
Slide Travel:
X 1 (Front Slide) 3.35"
X 2 (Rear Slide) 4.53"
Z 1 (Headstock) 8.47"
Z 2 (Sub Spindle) 8.47"
Cross Slide (Sub Spindle) 6.02"
Main Spindle:
Spindle Speeds 35-4500 RPM
Index Angle 0.001 DEGREES
Spindle Motor 7.5/10.0 HP
Sub Spindle:
Max Chucking Diameter 1.26"
Speed Range 200-3000 RPM
Index Angle 15 DEGREES
Spindle Motor 2 HP
Turrets:
Number of Turrets 2
Tool Stations per Turret 6
Rotary Tool Speed 224-4750 RPM
Rotary Tool Stations – Total 12
Turning Tool Size 5/8" SQ.
Drill Holder Diameter 1 3/8"
Machine Dimensions 107" X 65" X 63" H
Weight 6600 LBS.
