  • CNC Machine
  • Hitachi-Seiki
  • Hi-Tech Turn 23II
  • Lathe - CNC
  • 2.5"
  • 1994
  • Y Axis:
  • Live Tooling:
  • Tail Stock:

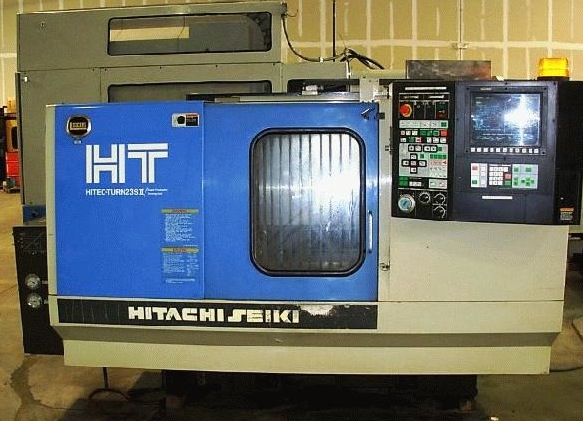

Hitachi-Seiki Hi-Tech Turn 23II Lathe - CNC 2.5

Specifications

Specifications:
Hole Thru Spindle 3"
Bar Diameter, Maximum 2.5"
Swing Over Bed, Maximum 15"
Maximum Turning Diameter 10"
Turning Length, Maximum 24"
X-Axis Cross Slide Travel 7.9"
Z-Axis Carriage Travel 24.8"
X-Axis Rapid Traverse 787
IPM Z-Axis Rapid Traverse 945
IPM CuttinG Feed Rate 0.0001-19.685 IPR
Taistock Spindle Taper #5 MT
Spindle Speeds, Range 20 to 3600 RPM
Spindle Nose A2-8 Spindle
Motor, Horsepower 20 HP
Overall Dimensions, L x W 9' x 6'
Overall Height 5'4"
Weight Approximately 9460 LBS

Notes

Equipped With:
Seiki Multi CNC Control with g-code control
90 degree bed design
2-Axis Design - RS232 Port
10" 3-Jaw Hydraulic Chuck
One touch prog. Hyd. Tailstock
Chip Conveyor
Power Tool Clamping - 10 Position Turret
(KV turret style w/toolholders)
Tool Presetter (q-setter)
10 Tools, 3600 RPM, RS232 Port, Prog.
Tailstock, Chip, Tool Presetter, '94
