  • CNC Machine
  • Mazak
  • INTEGREX 200-IV ST
  • Lathe - CNC
  • 3"
  • 2007
  • B Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:

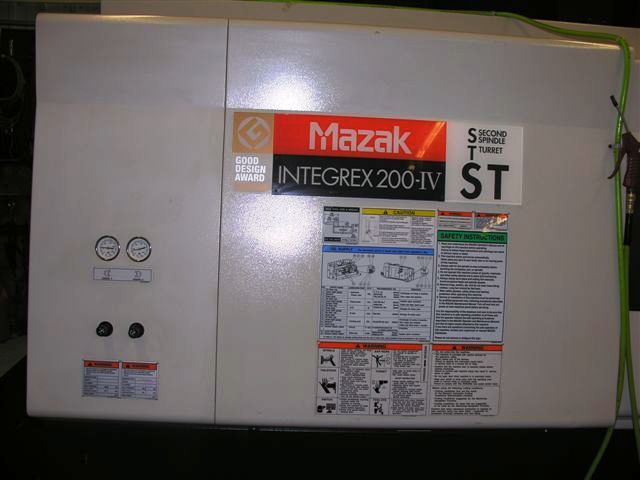

Mazak INTEGREX 200-IV ST Lathe - CNC 3

Specifications

CHUCK SIZE: 8"
MAX DIAMETER BAR CAPACITY: 2.5"
MAX SWING OVER BED: 26"
MAX TURNING DIAMETER: 19.5" - 26"
MAX MACHINING LENGTH: 60"
TOOL MAGAZINE: 40
LOWER TURRET TOOLS: 9
SPINDLE MOTOR: 30 HP
SPINDLE SPEED: 35 - 5000 RPM
SPINDLE BORE: 2.99"
SPINDLE NOSE: A2-6
SPINDLE TORQUE: 258 FT. LBS.
SUB SPINDLE BORE: 2.99"
SUB SPINDLE MOTOR: 25 HP
SUB SPINDLE TORQUE: 241 FT. LBS.
SUB SPINDLE SPEED: 35 - 5000 RPM
SUB SPINDLE INDEX: .001 DEGREE
RAPID TRAVERSE RATES (X / Y / Z): 1496 / 1024 / 1496 IPM
MILLING MOTOR: 25 HP
MILLING SPEED: 12,000 RPM
MILLING MOTOR (LOWER TURRET): 5 HP
MILLING SPEED (LOWER TURRET): 6000 RPM
X-AXIS TRAVEL: 22.83"
Y-AXIS TRAVEL: +/- 3.15"
Z-AXIS TRAVEL: 60.82"
X-AXIS TRAVEL (LOWER TURRET): 5.91"
Z-AXIS TRAVEL (LOWER TURRET): 58.66"
C-AXIS INDEX (MAIN & SUB SPINDLE): .0001 DEGREES
B-AXIS TRAVEL: 225 DEGREES
B-AXIS INDEX: .0001 DEGREES
MAX TOOL DIAMETER: 3.54" / 4.92"
MAX TOOL LENGTH: 11.81"
MAX TOOL WEIGHT: 22 LBS.
MACHINE DIMENSIONS (L X W X H): 151" X 87" X 103"
MACHINE WEIGHT: 19,140 LBS.
60" CUTTING LENGTH

Notes

MAZATROL MATRIX CNC CONTROL
15" COLOR TFT, GRAPHIC DISPLAY
CONVERSATIONAL PROGRAMMING
EIA/ISO INPUT FUNCTION
1 MB MEMORY, 3.5" FLOPPY DISC DRIVE
C, Y & B-AXIS MILLING CAPABILITY
PROGRAMMABLE SUB SPINDLE WITH 0.0001 DEGREE C-AXIS
(9) POSITION LOWER TURRET WITH MILLING CAPABILITY
40 TOOL MAGAZINE (KM 63)
8" KITAGAWA BB08 HYDRAULIC CHUCK ON MAIN SPINDLE
SMW AUTOBLOK HYDRAULIC CHUCK ON SUB SPINDLE
PROGRAMMABLE TOOL EYE
MILLING SPINDLE SYNCHRONOUS TAPPING
COOLANT THRU UPPER MILLING SPINDLE (213 PSI)
THREE COLOR TOWER LIGHT
CHIP CONVEYOR (HINGE-TYPE SIDE DISCHARGE)
