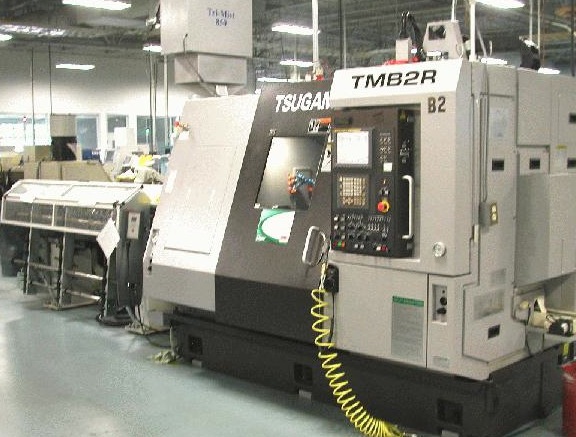

TSUGAMI MODEL TMB-2 MULTI AXES MILL/TURN CENTER
2010 MACHINE IN LIKE NEW CONDITION
LESS THAN 350 RUN HOURS !!
CNC:
Fanuc 18i-TB (9) Axes CNC: (B, X1, X2, Y, A1, Z1, Z2, C1, C2)
Main and Sub side C axis, .001 Degree positioning on B axis
Integral Main, Sub, and Tool Spindle Motors
Machine Specifications
Max. bar stock diameter Ø50 mm 2.0"
Max. machining length 250 mm (9.84")
Main spindle
Max. spindle speed 6,000 RPM
Drive – motor output (built in) 11/7.5 kW (15HP)
Spindle Index Angle 0.001º
Tool Spindle
Tool mounting system
Spindle with ATC
B –axis index angle / min. index angle
5º steps (by coupling) / 0.001 steps (by brake
Tool spindle index angle /. Position (tool peripheral)
5º steps (by coupling) / 0.001 steps (by brake)
Tool spindle index angle / position 90º / 4 positions
Max. spindle speed 10,000 RPM
Drive motor output (built in) 5.5 / 2.2 kW (7.37 HP)
Turret Number of tool stations 16
Square tool size " square tools
Drill holder sleeve diameter Ø 32mm
Index drive Servo Motor
Back spindle Max. spindle speed 6,000 RPM
Drive motor output (built in)11 / 7.5 kW (15 HP)
Spindle index angle 0.001º
Stroke X1 (tool spindle diametrical axis) 380 mm (14.96")
Y1 (tool spindle vertical axis) 110 mm (4.33")
Z1 (tool spindle longitudinal axis) 560 mm ± 135 (22" ± 5.31")
X2 (turret diametrical axis) 130 mm (5.12")
Z2 (turret longitudinal axis) 800 mm (31.5")
A1 (main spindle longitudinal axis) 250 mm (9.84")
A2 (back spindle longitudinal axis) 800 mm (31.5")
Feed Rate A2, Z1, Z2 40 m/min (1575 IPM)
A1, X1, X2, Y1 24 m/min (845 IPM)
ATC
Tool shank shape Kennametal KM40XTS
Max. tool dimension Ø80 mm x 150mm (4kg)
Number of tools stored 60 pcs
Tool change time (tool to tool) 0.8 sec
Supplemental
Net Weight 8,000 Kg or 17,600 lbs
Power source requirement 40 KVA
Compressed air requirement 0.5 Mpa
Air discharge rate 300 dm3/min (ANR)
Width x depth x height 144 x 87 x 89
