Sold!
Buy one like this

I want to sell a machine like this

  • CNC Machine
  • Nakamura
  • Super NTY3
  • Lathe - CNC
  • 1.65"
  • 2008
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Dual Spindles:
  • Live Tooling:

Specifications

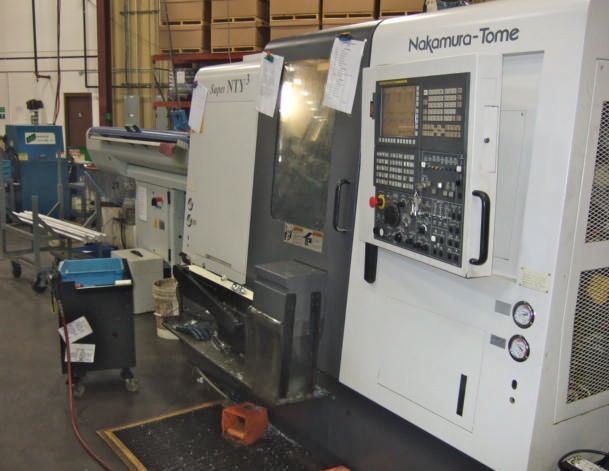

2008 Nakamura-Tome Super NTY3 Multi Tasking
Fanuc 31iA
LATHES, CNC, COMBINATION, 3-AXIS OR MORE
Capacity: Max. turning diameter 6.89"
Max. turning length 23.15"
Distance between spindle noses (min - max) 7.87" - 32.28"
Bar capacity 1.65"
Chuck size 6.5"
Axis Travel: Slide travel X1/X2/X3 5.31"
Slide travel Z1/Z2/Z3/B 9.6"/9.6"/22.7"/24.
Slide travel Y1/Y2/Y3 ±1.2/±1.2"/±1.2"
L/R Spindles: Spindle speed 6,000 RPM
Left spindle motor 14.75 / 10 HP
Right spindle motor 14.75 / 10 HP
Upper Turret: Number of Turrets Two (2)
Spindle speed 6,000 RPM
Driven motor power 9 HP
Type of turret head/Number of index positions Dodecagonal/24
Rotary system/Number of driven-tool stations Individual
Lower Turret: Number of Turrets One (1)
Spindle speed 6,000 RPM
Driven motor power 9 HP
Type of turret head/Number of index positions Dodecagonal/24
Rotary system/Number of driven-tool stations Individual
General: Floor space (L W H) 108" x 77" x 76"
Machine weight 17,640 Lbs

Notes

Equipped With:
Fanuc 31iA Control
12 Stations Turrets with Live Tools (2 upper Turrets / 1 Lower Turret)
1.65" Bar Capacity Right and Left Spindles
6000 RPM Right and Left Spindle
NT Nurse, Tools Life Management, and Extended Macros
"Y" Axis All Turrets
Parts Catcher "G" with exit Conveyor
Full "C" Axis on Both Spindles
Transformer
High Pressure Coolant 1000 PSI Both Turrets (2 Turrets)
Coolant thru the Right Spindle
Bar feeder interface
Iemca Prodigy 551-E 6' Magazine Bar Feeder with Remnant Retract
Microcentric Collet Chucks with Collets
Spindle and Draw Tube Adaptor
(04) Zero Degrees Live Holders
(02) 90 Degrees Live Tool Holder
Right Discharge Chip Conveyor
Comments:
25,212 Power On Hours
10,898 Run Hours
Has been cutting mostly aluminum and some steel
New Replacement Cost is $441,550
