  • CNC Machine
  • Okuma
  • Captain L370
  • Lathe - CNC
  • 2005
  • Y Axis:
  • Live Tooling:

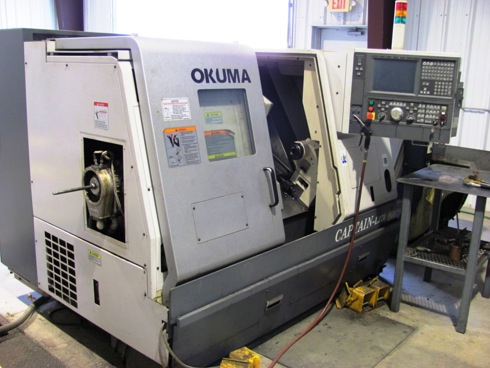

Okuma Captain L370 Lathe - CNC 2005

Specifications

Max Swing over Bed 20.86"
Max Turning Diameter 14.57"
Max Turning Length 19.685"
Cross Travel, X axis 10.23"
Longitudinal Travel Z axis 20.47"
Feed Range, Variable .1 - 400 IPM
Rapid Traverse Rate X / Y Axis 787 / 984 IPM
Turret Tool Positions 12 Positions
Spindle Nose A2-8
Spindle Bore 3.15"
Spindle Speed Range 40 - 4,500 RPM
Spindle Horsepower 25 HP / 30 HP - 30 Min
Quill diameter / 3.54" Dia
Quill stroke / Quill ID 4.742" / MT 5
Machine Power Requirement 220V /3Ph/60Hz (23 kva)
Approximate Floor Dimensions 86.6" x 67.7" x 68.7"
Approximate Machine Weight 9,240 lbs.
