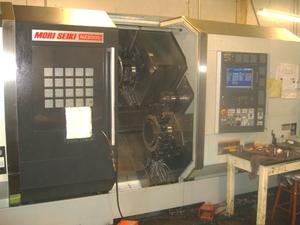

Mori-Seiki NZ-2000 T2Y Lathe - CNC 2008

Specifications

Chuck Size 8"
Max Diameter Bar Capacity 2.5"
Max Swing Over Bed 31.5"
Turning Diameter (Max / Std) 12.5" / 7.9"
Max Machining Length 31.8"
Spindle Speed 5000 RPM
Spindle Bore 2.9"
Spindle Nose A2-6
Spindle Motor 33 HP
Milling Speed 6000 RPM
Milling Motor 10 HP
Tools 16 x 2 (All Live)
Rapid Traverse Rates (X / Z) 1181 / 1968 IPM
X-Axis Travel (Upper & Lower Turrets) 8.3"
Z-Axis Travel (Upper & Lower Turrets) 31.9"
Y-Axis Travel 4.3"
C-Axis Index (Left & Right Spindles) .001 Degrees
B-Axis Travel 36.2"
Machine Dimensions (L x W x H) 154" x 145" x 91"
Machine Weight 18,260 lbs.

Notes

MORIC MSX-701 III CNC CONTROL
10.4" Color LCD
Upper & Lower Turrets with Twin Opposed Spindles
Y-Axis Milling Capability on Upper Turret
CAPPS Conversational Programming
(2) 8" Kitagawa BB-208 Hydraulic Chucks
(2) Coolant Thru Turret (1000 psi Chipblaster D30)
Manual Tool Presetter (L & R)
Work Piece Unloader / Single Hand (Right Spindle)
Turbo Chip Conveyor
