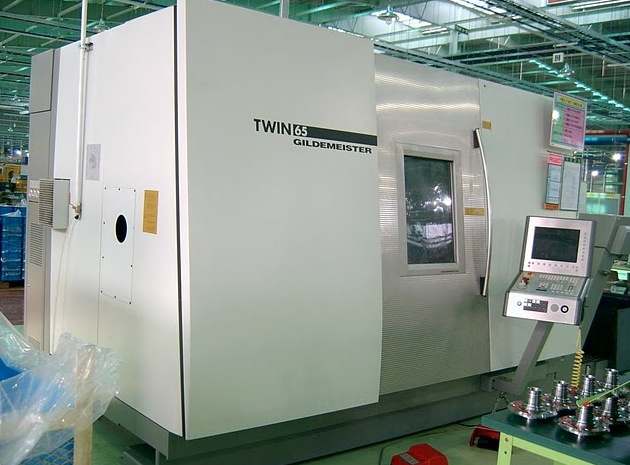

Gildemeister MF Twin 65 Mill-Turn Lathe - CNC 65mm 2003

Specifications

Working Area:
Clamp Diameter: 7.9"
Bar Diameter: 2.6"
Max. Distance Between Spindles: 31.5"
Slide Travel (X1, X2), Transverse: 7.5"/7.5"
Slide Travel (Z1, Z2) Longitudinal 21.8"/21.8"
Longitudinal Travel, Spindle 2: 23.6"
Workspindle 1:
Spindle Nose (Flat Nose): 170h5mm
Spindle Bore: 3.1"
Spindle Diameter In Front Bearing: 4.7"
Workspindle 2:
Spindle Nose (Flat Nose): 140h5mm
Spindle Bore: 2.2"
Spindle Diameter In Front Bearing: 3.5"
Main Drive 1 (Integral Spindle Motor):
Drive Output, Continuous Duty: 28.1 Horsepower
Speed Range: 25 - 5,000 Rpm
Main Drive 2 (Integral Spindle Motor):
Drive Output, Continuous Duty: 16.1 Horsepower
Speed Range: 31 - 6,300 Rpm
Turrets 1 And 2:
Number Of Tool Stations: 2x12
Driven Tool Stations: 2x12
Drive Output (40% Duty Cycle): 8.8 Horsepower
Torque (40% Duty Cycle): 14.8 Ft./Lb.

Notes

Machine model Twin 65 / DMG Gildemeister

2. Controller Siemens 840 D powerline

3. Technical Specification

Main-spindle and counter-spindle
3-jaw power clamping chuck with through –hole,
Type KH 200/68, make Berg, incl. connecting elements

2- Star type turrets with 12positions each & slides
2 - tool drives
2 C-axis
Y – axis (+/- 40 mm)
B – axis ( swivel angle +135/-45 deg.) for Upper Turret

4. The option
- chip conveyor
- pretransformer 220volts to 400 volts, 70KVA
- set of tool holders and driven tools
- Documents
