  • CNC Machine
  • Mazak
  • INTEGREX 300 III
  • Lathe - CNC
  • 3"
  • 2005
  • B Axis:
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Dual Spindles:
  • Live Tooling:

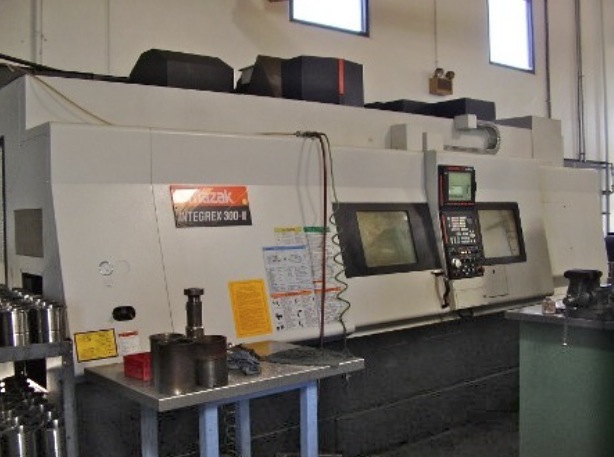

 Mazak INTEGREX 300 III Lathe - CNC 3

Specifications

Max. Swing:30.0"
Max. Swing Using Y-Axis:26"-30"
Max Machining Dia:30.0"
Maximum Cutting Length:60"
Spindle Bore:4.09"
Spindle Nose:a2-8
Max Bar Capacity:3.625"
Spindle Speeds:3500 Rpm
Axis Travel:
-C - Axis:.001 Increments
-X - Axis:24.8"
-Z - Axis:62.41"
-Y - Axis:+/- 4.53"
-B - Axis:225 Degrees/ 5 Degree Clamping
-W - Axis:60.24"
Tailstock Travel: 53.11"
Rapid Traverse Rates:
-C - Axis: 555 Rpm
-X - Axis: 1496 Ipm
-Z - Axis: 1496 Ipm
-Y - Axis: 591 Ipm
-W - Axis: 1181
Min. Spindle Indexing (Main Spindle):.001 Degree
Tool Magazine Capacity:40 Atc
Max. Tool Dia. Adj.:3.54"/4.92"
Max. Tool Length:15.75"
Rotary Tool Spindle Speed:10,000 Rpm
Rotary Tool Torque:88.2 Ft-Lbs.
Rotary Tool Motor:20 Hp
Maximum Tool Weight:22 Lbs.
Z - Axis Thrust:3124 Ft/Lbs.
Tailstock:N/C Programmable
Main Motor: 35 Hp

Notes

Mazatrol Fusion 640Mt Pro
Performance Cnc Package:
-Mazak Tapping / Tornado Boring
-Eia / Iso
-Eia / Iso Code Input
-Synch Tapping
-Additional Eia/Iso Functions
-Mazak 2D High Speed Mach.
-600 Macro
-Inverse Time Feed
-Thread Cutting (G33)
-Sequence # Comparison Stop Function
-Add Workpiece Coordinate Syst. (G54.1)
15Kb/ 213 Psi Thru Coolant/ Flood Simul-Flow
40 Km Tool Mag
Hydraulic Pressure Inter-Lock
Chip Conveyor - Side Hinge
