- CNC Machine
- Okuma
- V4018
- Lathe - CNC
- 2001
- Y Axis:
- Live Tooling:
Specifications

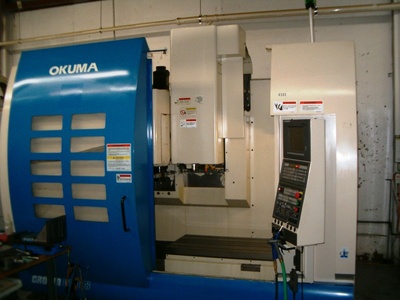

(1) Used OKUMA "Crown" CNC Vertical Machining Center,Model V4018, New 2001
Specifications:
Working Surface of Table:........................................................... 47.24" x 20.08"
Table Load Capacity:.................................................................. 1500 Lbs.
Travels – Longitudinal (X-Axis):.................................................. 40"
- Cross (Y-Axis):......................................................... 18"
- Vertical (Z-Axis):....................................................... 17"
Distance Spindle Nose to Table:................................................... 6.3" – 24.02"
Rapid Traverse Rate (X- & Y-Axes):........................................... 1417" / Min.
(Z-Axis):......................................................1181" / Min.
Spindle Speeds: ...................................................................... 50 – 12,000 RPM
Spindle Taper: ..................................................................... CAT #40
Spindle Motor: ...................................................................... 10 HP 3/60
Overall Dimensions (Approx.):.................................................... 114" x 114"" x 104""H
Weight (Est.): ..................................................................... 13,200 Lbs.
Notes
Okuma OSP-U10M CNC Controls
20-Position Automatic Tool Changer
Full Enclosure Guarding
Chip Flush System w/ Chip Pan
Rigid Tapping
12K RPM Spindle Upgrade
