  • CNC Swiss
  • Citizen
  • L-20(5) VII
  • Lathe - CNC
  • 20mm
  • 1995
  • C Axis:
  • Live Tooling:

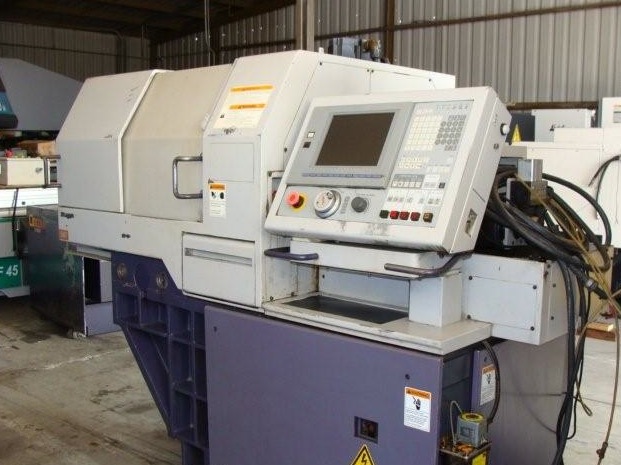

Citizen L-20(5) VII Lathe - CNC 20mm 1995

Specifications

CNC CONTROL: CINCOM SYSTEM L (WINDOWS)
MAX. MACHINING DIAMETER: 3/4"
MAX. MACHINING LENGTH PER ONE CHUCK: 8.1"
MAX. DRILLING DIAMETER: UP TO .394"
SPINDLE SPEED: 200 - 10000 RPM
BACK-WORK:
-MAX. CHUCKING DIA. OF PICK-OFF SPINDLE: .812"
-PICK-OFF SPINDLE SPEED: 200 - 8000 RPM
-PICK-OFF SPINDLE MOTOR: 2 HP
-MIN. SPINDLE INDEX: 1 DEG
ROTARY TOOL:
-ROTARY SPINDLE SPEED: 200 - 5000 RPM
-ROTARY TOOL MOTOR: .5 HP
-NUMBER OF TOOLS MOUNTED: 16
-TURNING / FRONT ID / BACK ID / LIVE TOOLS: 6 / 3 / 3 / 4
POWER CONSUMPTION: 6 KVA
REQUIRED FLOOR SPACE: 65" X 37"
APPROX. WEIGHT: 3600 LBS.

Notes

EQUIPPED WITH
-PARTS CATCHER
-C-AXIS MAIN SPINDLE AND SUB SPINDLE
-CAV BARFEED
-MISC. TOOLING
-ALL AVAILABLE MANUALS
-MIST COLLECTOR
