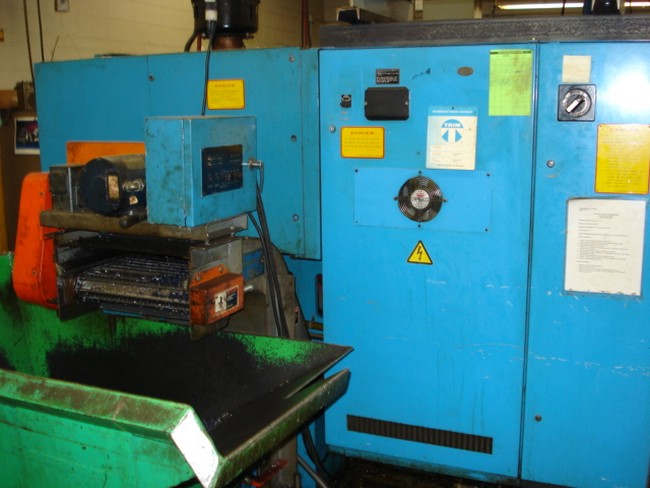

Specifications

CAPACITIES:
POWER CHUCK SIZE............... 10" (OUTER DIAMETER)
COLLET CHUCK
ROUND........................ 2.50"
HEXAGON...................... 2.25"
SQUARE....................... 1.75"
MAX WORK LENGTH FOR BAR WORK... 15.75"
SWING OVER BED................. 17.75"
SPINDLE:
NOSE......................... A2-8
NOTE DIAMETER................ 8.25"
INNER DIAMETER............... 3"
INNER DIAMETER OF DRAW PIPE.. 2.5
SPEED RANGE.................. 20 - 3000 RPM
MOTOR........................ AC, 20 HP

TURRET:
TOOLING STATIONS............. 10
DISTANCE ACROSS FLAT......... 14.173"
I.D. TOOL HOLE SIZE.......... 1.75"
DOUBLE PLANE HEAD 1"
TOOL SHANK SIZE.............. 1" SQ
MAX. INDEXING CLEARANCE...... 23.25"
INDEXING TIME................ 0.7 SEC/POS
SLIDE:
MAX STROKE:
X-AXIS..................... 8.4645"
Y-AXIS..................... 18.1102"
RAPID TRAVERSE RATE:
X-AXIS..................... 472 IPM
Y-AXIS..................... 630 IPM
MAX FORCE:
X-AXIS..................... 2490 LBS
Y-AXIS..................... 2530 LBS
