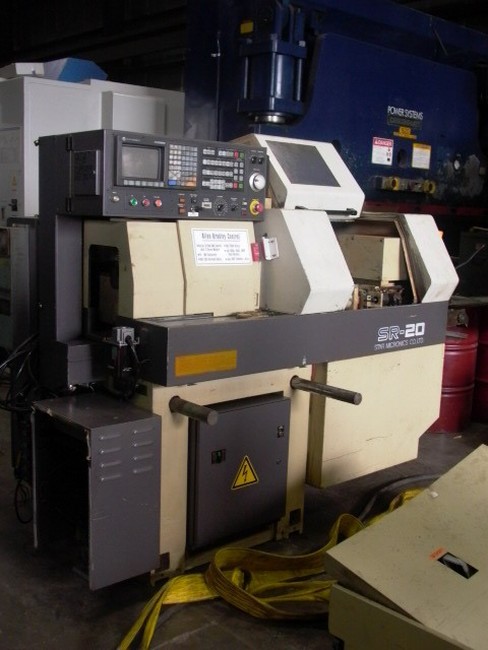

Star SR-20 R Lathe - CNC 20mm 1998

Specifications

Max Turning Diameter 0.781"
Max Machining Length 8"
Main Spindle Motor 5 HP AC
Sub Spindle Motor 3 HP
Main Spindle Speed 500 - 10,000 RPM
Max Drilling / Threading 0.390" / M8 x P1.25
Main Spindle Index .001 Degrees
Sub Spindle Index 1Degree
Number of Tools 18
Turning Tools 6
Live Tools 4
Front End - Working Tools 4
Backworking Tools 4
Rotary Tool Motor 1.2 HP
Rotary Tool Speed 8000 RPM
Machine Dimensions (L x W x H) 83" x 43" x 70"
Machine Weight 4400 lbs.

Notes

ALLEN BRADLEY CNC CONTROL
9" Monochrome CRT
IEMCA CS225/37CTH 12 ft. Magazine Barfeed
Synchronized Tapping
C-Axis Milling Capability on Main Spindle
Programmable Sub Spindle
Synchronized Revolving Guide Bushing
Parts Exit Conveyor
Chip Conveyor
