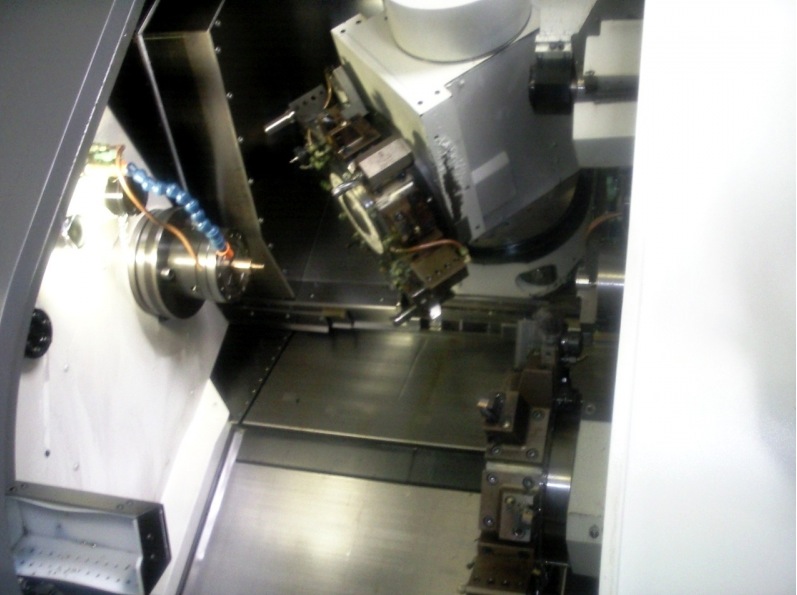

Nakamura Super NTJ Lathe - CNC 2.5

Specifications

18I-TA,
(1) Used Nakamura-Tome Super Ntj 9 Axis Turning Center
With Sub Spindle and Y-Axis New-2007
Specifications:
Travel: X Axis:................ 6.59"
Y Axis:................ 2.440"
Z Axis:................ 22.7"
Turning Diameter:.............. 7.48"
Turning Length:................ 24.41"
Chuck Diameter:................ 8.000"
Sub Spindle Chuck Diameter..... 6"
Left Spindle Bar Capicity:..... 2.5"
Right Spindle Bar Capacity:.... 2.0"
Spindle Speed:................. 5000 Rpm
Main Motor (Hp):............... 20 / 15 Hp
Sub Spindle Motor:............. 15 / 10 Hp
Milling Motor:................. 5 Hp
Milling Speed:................. 6000 Rpm
Right Spindle Nose:............ a2-5
Left Spindle Nose:............. a2-6
Upper Turret Number of Tools:.. 24
Lower Turret Number of Tools:.. 24
Machine Dimensions (Lxhxw):.... 154.72" X 91.3" X 83.26"

Notes

9 axes
Y Axis
chip conveyor
programmable pneumatic parts ejector
parts transporting device
15 bar coolant pumps
oil separation unit
various tool holders
bar feeder MULTIFEED, bar length 1.5 m
