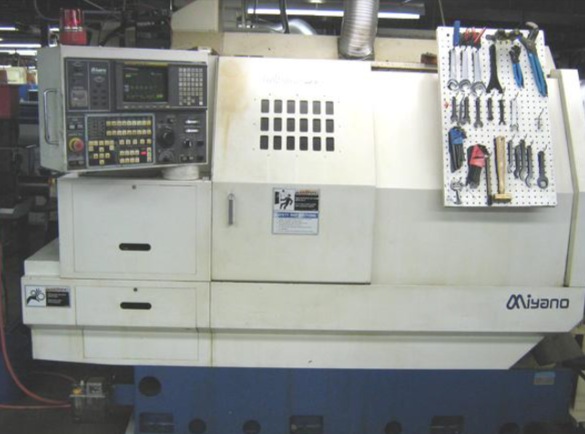

Miyanomatic BNE-51s Lathe - CNC 51mm 1997

Specifications

1997 MIYANO BNE-51S
Chuck Size 6"
Max Diameter Bar Capacity 2"
Max Swing (Upper / Lower) 20" / 17.9"
Max Turning Diameter 6"
Max Machining Length 3.54"
Main Motor 20 HP AC
Tools (Upper / Lower Turret) 12 (6 Live) / 10 (5 Live)
Spindle Speed 54 - 4000 RPM
Spindle Bore 2.4"
Spindle Nose A2-6
Milling Motor (Upper / Lower Trt) 3/2 HP
Milling Speed (Upper / Lower Trt) 203 - 4050 / 180-3600 RPM
Sub Spindle Speed 54 - 4000 RPM
Sub Spindle Motor 7.5 HP AC
Sub Spindle Bar Capacity 1.63"
Sub Spindle Travel 17.7"
Rapid Traverse Rates 472 IPM
X-Axis Travel (Upper / Lower) 5.9" / 4.5"
Z-Axis Travel (Upper / Lower) 14.96" / 4.9"
Machine Dimensions (L x W x H) 102" x 75" x 77"
Machine Weight 13,900 lbs.

Notes

FEATURES:
FANUC 18-T CNC CONTROL
9" CRT Monochrome
C-Axis Milling Capability on Main & Sub Spindle
6" Collet Chuck for Main / 4" Collet Chuck for Sub Spindle
7-Axis Simultaneous Machining
Auto Parts Catcher
Work Exit Conveyo
