  • CNC Machine
  • Nakamura
  • TW-20MM
  • Lathe - CNC
  • 2"
  • 1997
  • C Axis:
  • Y Axis:
  • Dual Spindles:
Nakamura TW-20MM Lathe - CNC 2

Specifications

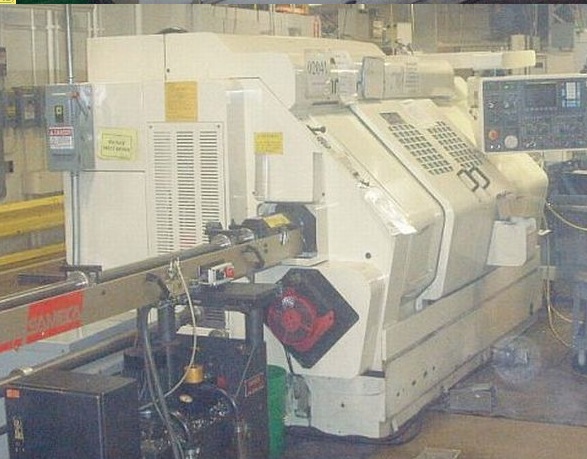

(1) USED NAKAMURA-TOME TW-20MM CNC TURNING CENTER
NEW 1994
SPECIFICATIONS:
Swing Over Bed...........................10.6 In
Max Turning Diameter.....................10.6 In
Max. Turning Length..................... 7.6 In
Spindle Nose.............................A2-6
Spindle Bore.............................2.5 In
Spindle Speeds...........................50 - 5000 RPM
Total No. of Tools.......................24(12 x 2)
Effective Slide Travel Left Unit
X-Axis..............................7.7 In
Z-Axis..............................10.4 In
Effective Slide Travel Right Unit
X-Axis .............................7.7 In
Z-Axis..............................30.7 In
Rapid Traverse:
X - Axes............................472 IPM
Z - Axes............................945 IPM
Live Tool Speed..........................45 - 3600 RPM

Notes

EQUIPPED WITH:
Fanuc 0-TTA Control
Barfeed
3 LIVE TOOLS INCLUDED
Many Misc. Holders (ID/OD)
Full C Axis
Two 8 Inch Chucks
Parts Catcher
Chip Conveyor
Asking Price: $74,500.00
