  • CNC Machine
  • Daewoo Doosan
  • TT1800SY
  • Lathe - CNC
  • 2.62
  • 2010
  • B Axis:
  • C Axis:
  • Y Axis:
  • Live Tooling:

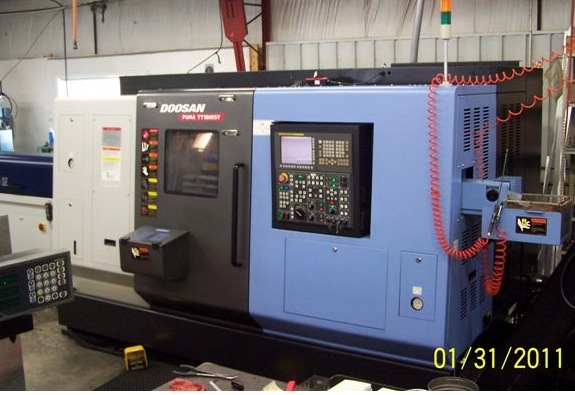

Daewoo Doosan TT1800SY Lathe - CNC 2.62 2010

Specifications

Date of Manufacture 2010
Max Turning Diam Upper & Lower 9.05"
Distance Between Spindle Noses 29.5"
X1 Axis Travel 6.5"
X2 Axis Travel 7.48"
Z1 Axis Travel 27.5""
Z2 Axis Travel 28.34"
B Axis Travel (Right Spindle) 30.31"
C Axis Contouring (Both Spindles) 0.001º
Y Axis Travel 3.93" (± 1.96")
Rapid Traverse Rate X/Z & B Axes 787/1574 Ipm
Spindle Nose a2-6
Spindle Speeds 50 - 5,000 Rpm
Spindle Bore 3.0"
Max. Bar Stock Diameter 2.6"
Spindle Motor 30 Hp
Turret Capacity (Each Turret) 12 Positions
Turret Index Time 0.15 Sec/Station
Live Tooling Motor 7.5 Hp
Live Tooling Speeds 5000 Rpm
Approx. Dimensions 181" X 84" X 82"
Machine Weight (Approx) 18,000 Lbs

Notes

Fanuc 31It Cnc Control With 10.4" Lcd Screen
Rs-232 Port & Ethernet Interface for Dnc Use
S26 Collet Chucks for Left & Right Spindles
Edge Technologies Rebel 102 Servo Barfeed Unit
Tool Eye/Tool Presetter (for Both Turrets)
Auto Parts Catcher, Universal Barfeed Interface
Chip Blaster 1000 Psi High Pressure Coolant (Upper)
High Pressure 200 Psi Coolant System (Lower Turret)
Right Hand Discharge Lift-Up Chip Conveyor
Fully Enclosed Splash & Safety Guarding
All Available Turning & Live Tool Holders & Manuals
***Power on Time 4640 Hours Cutting Time 742 Hours***
