  • CNC Machine
  • Daewoo Doosan
  • 2000 SLY-GL
  • Lathe - CNC
  • 2.625"
  • 2006
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:
Daewoo Doosan 2000 SLY-GL Lathe - CNC 2.625

Specifications

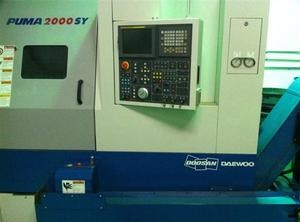

2006 Doosan Puma 2000SY
CNC Turning Center with Sub-Spindle and "Y" Axis
Specifications:
Control Fanuc 18iTB
Swing Over Bed 23.6"
Swing Over Carriage 21.6"
Max Bar Capacity 2-5/8"
Distance Between Spindles 33.8"
Max Cutting Diameter 13"
Spindle Speed (Main) 5,000 RPM
Spindle Speed (Sub) 6,000 RPM
Spindle Motor(Main/Sub) 20/10 HP
X-Axis Travel 9.84"
Y-Axis Travel 4"
Z-Axis Travel 22.8"
Rapid Traverse Rates (X/Z) 790/945 IPM
Turret Positions 12
Machine Weight 10,670 Lbs
Equipped With:
Full "C" Axis On Main and Sub-Spindle
Programmable Parts Catcher and Conveyor
Automatic Tool Presetter
Parts Catcher and Parts Conveyor
Rigid Tap On Main Spindle, Sub-Spindle, and Live Tooling
Tool Monitoring System
Box Way Construction
6" Sub-Spindle Chuck
8" Main Spindle Chuck
Chip Conveyor
Collet Chuck
LNS Quickload Servo 65 Barfeeder

Notes

2006 Doosan Puma 2000SY
Sub-Spindle "Y" Axis Live
Tool CNC Lathe. Machine is in
excellent condition and can
be viewed under power as
needed. Machine includes:
sub-spindle, "Y" axis live
tooling, full "C" axis on the
main and sub-spindle, parts
catcher, parts conveyor,
automatic tool presetter,
rigid tap on the main and
sub-spindle, 8" main spindle
chuck, 6" sub-spindle chuck,
chip conveyor, and LNS
Quickload Servo 65 barfeeder
