Spinner TM Lathe - CNC 42mm 1999

Specifications

**Twin Spindles Horizontally Opposed - with 5-Axis
Machining Capability**
Specifications:
Travels:
X-Axis 15.74" or 400mm
Y-Axis 11.81" or 300mm
Z1-Axis 16.73" or 425mm
B Axis 0 - 360 Grad.
C1-Axis 0 - 360 Grad.
C2-Axis 0 - 360 Grad.
Spindle 1 and 2
Max. Spindle Speed 6,000 RPM
Bar Capacity 1.653" or 42mm

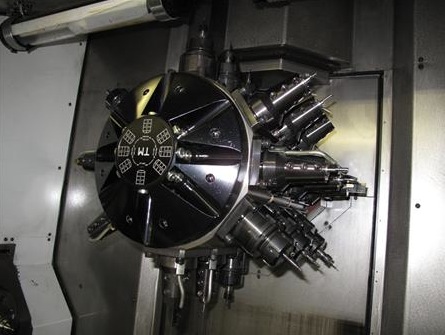

Turret
Number of Tool Positions 24
Number of Tool Positions with Live tooling 18
Speed of Live Tooling 0 - 9,000 RPM
Power of Live Tooling 8 HP or 6 KW
Spindle Motor 20 HP or 14.75
KW
Machine Weight 16,500 Lbs. or 7.500 Kg.
Floor Space 2.9 x 3.3 x 2.3
Meters square

Notes

(1) Used Spinner Model TM CNC Dual Spindle High Precision Lathe, New
1999
5 Axis
Equipped With:
Control: Siemens 840D
Live Tools
Full B-Axis for Tool Angle
SMW Spacesaver 2100 Magazine Barfeed
Rear Discharge Chip Conveyor
Note: This machine has only been doing medical type work, it is in
excellent condition.
