Miyanomatic BNE 46 Lathe - CNC 46 mm

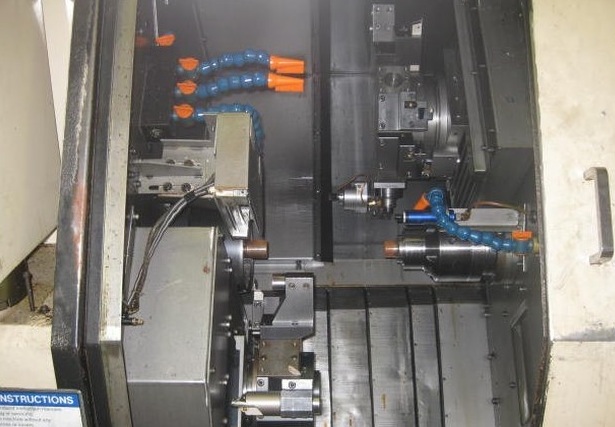

Click here for photo gallery.

Specifications

USED MIYANO BNE-46S MULTI-AXIS LIVE SPINDLE CNC LATHE
S/N: BE46046
SPECIFICATIONS:
MAX. O.D.: 2"
MAX. LENGTH: 3"
MAX SWING: 20" UPPER/17" LOWER
SPINDLE NOSE: (MAIN & SUB) FLAT
SPINDLE SPEEDS (MAIN): 40 TO 4000 RPM
SPINDLE SPEEDS (SUB): 170 TO 5000 RPM
SPINDLE MOTOR: 15 HP MAIN
5 HP SUB
TURRET INDEX TIME: .05 SEC./POS
MAX SLIDE STROKE X-AXIS: 4.7" UPPER/3.35" LOWER
MAX SLIDE STROKE Y-AXIS: 11" UPPER/3.74" LOWER
RAPID RATES: 472 IPM UPPER/378 IPM LOWER
MACHINE WEIGHT: 12,300 LBS.
MACHINE DIMENSIONS: 102" X 67" X 70"
TOOLS: 12-POSITION TURRET TOOL CHANGER

Notes

EQUIPPED WITH:
FANUC SERIES 18-T PLC
