  • CNC Machine
  • Emco-Maier
  • EMCOTURN 465 DS
  • Lathe - CNC
  • 2.56"
  • 1999
  • C Axis:
  • Number of Axis: Yes
  • Dual Spindles:
  • Gantry Load:
Emco-Maier EMCOTURN 465 DS Lathe - CNC 2.56

Specifications

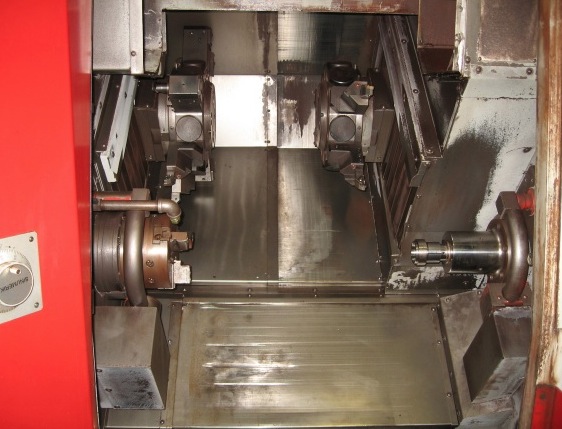

Emco-Maier 6-Axis Twin Spindle CNC Turning Center
Serial No.: R4B-V01-M37004
Age: 1999
Model: Emco-Turn 465DS
CATALOGUE SPECIFICATIONS:
Maximum Diameter Bar Stock............. 2.56"
Swing Over Bed, Maximum................ 14.5"
Turning Length ........................ 7.4"
Spindle Nose .......................... A-6
X-Axis Stroke ......................... 9.5"
Z1-Axis Stroke ........................ 7.4"
Z2-Axis Stroke ........................ 26.77"
Turret Index Time ..................... 0.1 Second
Toolholder ............................ VDI 30
Main Spindle Speed Range .............. 0-4000 RPM
Live Tool Spindle Speed Range ......... 0-4000 RPM
Left Spindle Drive Motor .............. 20 HP
Right Spindle Drive Motor ............. 15 HP
Live Tool Drive Motor Horsepower ...... 7.5 HP
Electrical System...................... 440/3/60

Notes

EQUIPPED WITH:
Siemens 840D 6-Axis CNC Control
(2) 12-Position Turrets w/ Live Milling All Stations
7" 3-Jaw Chuck (Left Hand Spindle)
Collet Chuck (Right Hand Spindle)
Toolsetter (Both Spindles)
C-Axis (Both Spindles)
Coolant System
Chip Conveyor
Automatic Gantry Loading System
