  • Automatic
  • New Britain
  • Model 62 2-1/4"
  • Multi Spindle Bar
  • 6 Spindle
  • 1969
New Britain Model 62 2-1/4

Specifications

STANDARD SPECIFICATIONS
Height: 6'5"
Length:12'
Weight:19,000 lbs
Width:4'8"
Cap. Round: 1 5/8" or 2 1/4"
Coolant Capacity 130 Gallons
Idle 1.52 w/3" Tool Slide Cam
Idle 1.66 w/6" Tool Slide Cam
Max Die Head Dia: 5 1/4"
Max Feed Lower Slides 1.655"
Max Stock Feed 7 1/2"
Max Feed Mid Slides 1.504"
Max Feed Top Slides 1.504"
Max Trav Lower Slides 2 9/16"
Max Trav Mid Slides 2 5/16"
Max Trav Top Slides 2 5/16"
Motor Horsepower 15-30 at 1800 RPM
Spindle Speeds 177-2519
Standard Bearings: Ball
Tool Slide Travel 6"

Notes

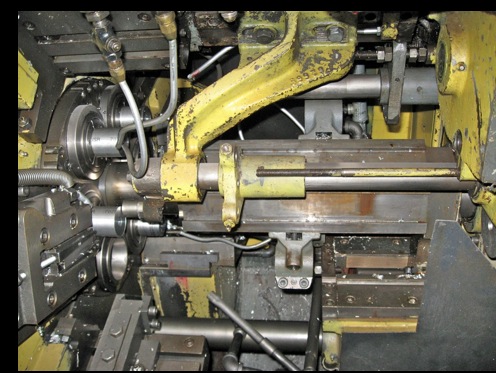

Amtech Machine attached are photos of our Model 62 New Britain, 2-1/4" capacity 6 spindle, serial # 69296.
Machine was built in France by AMTEC.
Machine is equipped with:
6 slides.
No attachments.
No chip conveyor.
External coolant pump.
