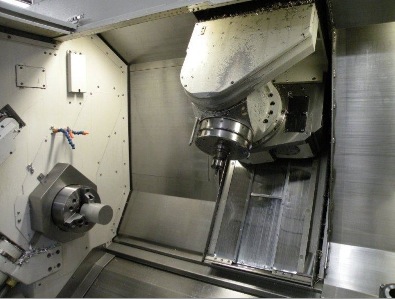

Mazak INTEGREX 200-IV ST Lathe - CNC 3

Specifications

Mazak Integrex 200-Iv St W/ Lower Turret
Specifications:
Main & Sub Spindle:
Chuck Size........................ 8"
Max Diameter Bar Capacity......... 2.99"
Spindle Nose...................... a2-6
Spindle Speeds.................... 5000 Rpm
Spindle Motors.................... 30 Hp Main / 25 Hp Sub
Main & Sub Spindle Indexing....... .0001 Deg (Full Contouring)
Maximum Swing..................... 26"
Maximum Swing Using Y-Axis........ 19.5" - 26"
Maximum Swing over Lower Turret... 10.6"
B Axis............................ 0.0001 Degree
Y Axis............................ +/- 3.15"
X Axis............................ 22.83"
Z Axis ........................... 60.82"
X2 Axis Lower..................... 5.91"
Z2 Axis Lower 60"................. 58.66"
Second Headstock W-Axis 60"....... 61.02"
Upper Turret and Tooling Specifications:
Type of Turret.................... 1 Pos. W/Atc
Tool Size......................... 1.5"
Magazine Capacity................. 40 Tools
Rotary Tool Spindle Speed......... 12,0000 Rpm
Rotary Tool Spindle Horsepower.... 25 Hp
Lower Turret and Tooling Specifications:
Type of Turret.................... Drum
Tool Size......................... 1.25"
Total Number of Tools............. 9
Lower Turret With Milling Option:
Rotary Tool Spindle Speed......... 6,000 Rpm
Rotary Tool Spindle Horsepower.... 5 Hp
*Additional Tooling Available Valued at 35K New, Price to Be Negotiated.
** in Plant, Under Power.
** Available for Immediate Inspection and Purchase.
Price: $245,000.00

Notes

Installed new 8/2007
Equipped With:
Lower Turret Option
Live Tooling Option on Lower Turret
Mazatrol Matrix Control
Cardbus I/F (2-Slot)
Lan Port
Y Axis Control
Km Type Tooling (Upper Turret)
Coolant Through Milling Head (Upper Turret)
213 Psi Thru/Flood Coolant
40 Km Tool Magazine
Rotary Tool Spindle Speed 12,000 Rpm
Tool Eye (Automatic)
Prep for 1000 Psi Super Flow
Milling-Spindle Synchronous Tapping
Basic Tooling Package Included (Some Live Tools for Lwr Turret)
Prepped for Flash and Multi Tooling
Km Standard Tooling Package With the Purchase of the Machine:
1 Pc Turning Holder (Forward)
3 Pc Turning Holder (Reverse)
3 Pc Boring Bar Holder 1.5" Dia. I.D.
6 Total Boring Bar Sockets Ranging from 1.25"I.D. X 1.5" O.D.
to .3125" I.D. X 1.5" O.D.
3 Total Drill Socket Mt #1,2,&3 I.D. X 1.5" O.D.
1 U-Drill Holder 40Mm I.D.
3 Total U-Drill Socket 32Mm,25Mm,20Mm I.D. X 40Mm O.D.
2 Total Flash Tool 1.06" O.D., One Short, One Long
Standard Tooling Package With Machine (Lower Turret With Milling):
3 Pcs Turning Block
2 Pc Boring Bar Hlder 1.25" Dia. Id
6 Total Boring Bar Sockets (Ranging 1" Id X 1.25" Oc to 0.3125" Id X 1.25" Od)
1 Pc Drill Socket Mt #2 Id X 1.25" Od
1 Pc Drill Socket Mt #1 Id X 1.25" Od
1 Pc H Type Drill Holder
1 Pc H Type Mill-Drill Holder
1 Pc V Type Mill-Drill Holder
*Cut Mostly Aluminum and Some Stainless*
*Basic Tooling (See Above) Included With Purchase*
