- Automatic
- New Britain
- Model 52
- Multi Spindle Bar
- 6 Spindle
Specifications
Maximum Capacity - Round 1-1/4"- Hexagon 1-1/16"
- Square 7/8"
Stock Feed - Maximum 5"
Tool Slide Travel 4"
Travel (Lower Slides) Front - Maximum 1-3/4"
Travel (Lower Slides) Rear - Maximum 2"
Lower Slides Feed - Maximum 1"
Middle Slides Travel - Maximum 1-3/4"
Middle Slides Feed - Maximum 1"
Travel (Upper Slides) Front - Maximum 1-3/4"
Travel (Upper Slides) Rear - Maximum 2"
Upper Slides Feed - Maximum 1"
Spindle Speeds 271 - 4249 RPM
Approximate Weight 12,900 Lbs.
Notes

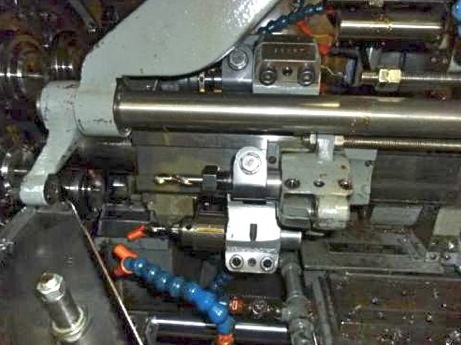

1 New Britain 1-1/4 inch 6-Spindle Model 52 Multiple
Spindle Automatic Bar Machine, S/N: 38097 (1973,
Rebuilt By L & R In 2003); with Hydraulic Clutch,
Spindle Stops, Roll Threading, Knurling, Broaching,
Coolant System, Chip Pan Base, 6-Position Bar Feed,
Drive and Controls
