- Automatic
- New Britain
- Model 52
- Multi Spindle Bar
- 6 Spindle
- 1976
Specifications
Maximum Capacity - Round 1-1/4"- Hexagon 1-1/16"
- Square 7/8"
Stock Feed - Maximum 5"
Tool Slide Travel 4"
Travel (Lower Slides) Front - Maximum 1-3/4"
Travel (Lower Slides) Rear - Maximum 2"
Lower Slides Feed - Maximum 1"
Middle Slides Travel - Maximum 1-3/4"
Middle Slides Feed - Maximum 1"
Travel (Upper Slides) Front - Maximum 1-3/4"
Travel (Upper Slides) Rear - Maximum 2"
Upper Slides Feed - Maximum 1"
Spindle Speeds 271 - 4249 RPM
Approximate Weight 12,900 Lbs.
Notes

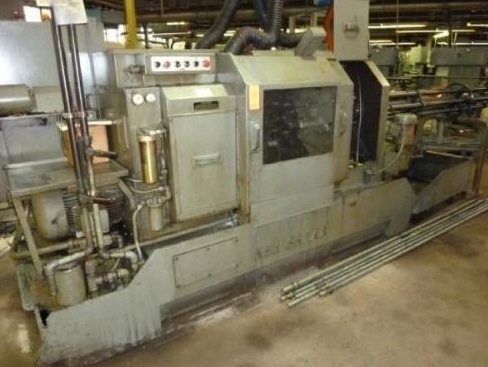

1 New Britain 1-1/4 inch 6-Spindle Model 52 Multiple Spindle
Automatic Bar Machine, S/N: 38613 (1976); with Hydraulic Clutch,
Spindle Stops, Roll Threading, Knurling, Broaching, Coolant System,
Chip Pan Base with Mechanically Driven Elevated Chip Drag Out
Conveyor, 6-Position Bar Feed, Top Mounted Fume Extractor,
Drive and Controls (Located in Dolton, IL)
