  • Automatic
  • Brown & Sharpe
  • #2 Ultramatic
  • Single Spindle Bar
  • 1-1/4"
  • 1966
  • Spindle Size: 1 1/4"

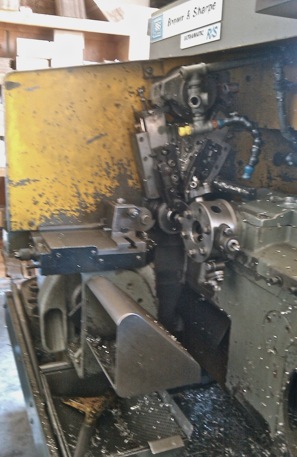

Brown & Sharpe #2 Ultramatic Single Spindle Bar 1-1/4

Specifications

Floor Space 95 X 52 x 77"
Weight Approx 5100 Lbs
Cross Slide Max Travel 1.75"
Cycle Time 1 2/3 - 1000 Sec.
Diameter Of Tool Holes 1"
Max Feed-120 Drive Slev 2.25"
Max Feed-240 Drive Sleeve 4"
Max Turning Length 3 1/2"
Number High Speeds 1 1/4" 18
Number High Speeds 1 5/8" 17
Number Of High Speeds 3/4" 18
Max Spindl e Speed 1 1/4" 3503
Max Spindle Speed 1 5/8" 2906
Max Spindle Speed 3/4" 5018
Turret Adjust Screw Feed 1"
Turret Indexing Time 1/2 Sec

Notes

2 Speed
2 Vertical Slides
Six Hole Turret
Feed and Speed Gears
Cross Slide Tool Holders
Vertical Slide Holder
Turret Tooling
